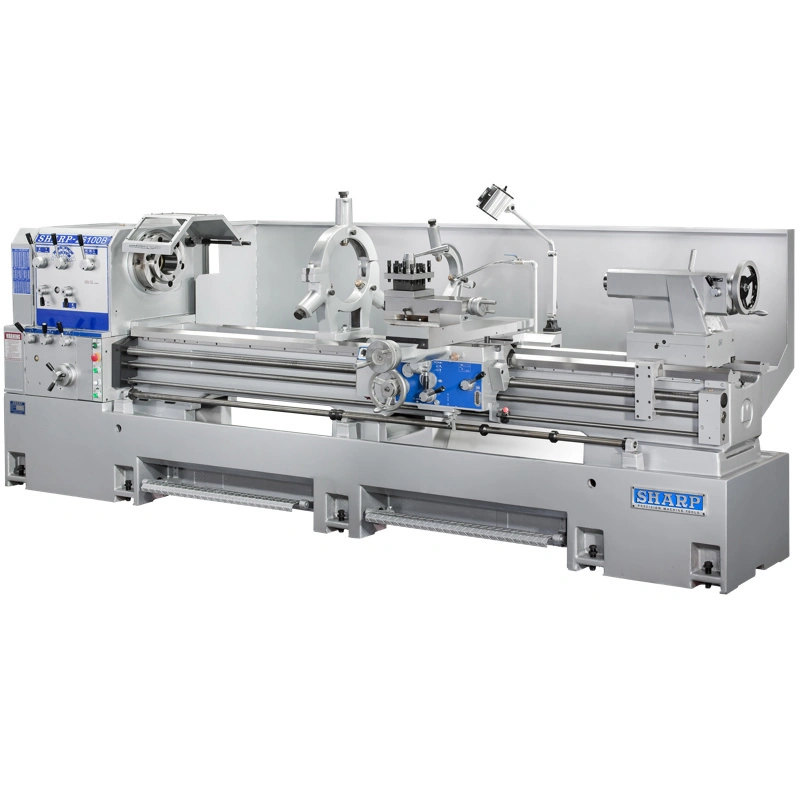

This model has 4.5” spindle bore, D1-11 Camlock spindle nose, 16” wide bed, 15 HP motor offers great capacity for large work piece. The low speed goes down to 10 rpm offering enough torque for heavy cutting.
- D1-11 camlock spindle
- 4.5″ spindle bore
- 15 HP motor
- 12 speeds (10-1,000 rpm)
- Quick change gearbox
- One piece Meehanite cast bed
- Direct selection for inch / metric threads
- Double chucks available as option
| Swing | 26" | 660.4 mm |
| Centers | 160" | 4,064 mm |
| Threading | inch, metric | inch, metric |
| Taper | 4.0 | 4.0 |
| Power | 15 hp | 11.2 kW |
| RPM | 1,000 RPM | 1,000 RPM |
| Dimensions | 18.83x3.41x4.33 ft. | 18.83x3.41x4.33 ft. |
| Weight | 10,802 lbs. | 10,802 lbs. |
