2005 Ficep 1102 DZTT CNC Beam Drilling And Coping Line, Drilling And Plasma Heads, Hypertherm Max200 Plasma Cutting System, Powered In-Feed Positioning & Outfeed Conveyors, Automatic Hydraulic Double Jaw Vise
| Power | 15 hp | 11.2 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Thermal Coping Unit Cutting Area | 43 875" X 17.75" X 31.5 | 43 875" X 17.75" X 31.5 |
| Max Beam Section Volume | 480" X 43.875" X 17.75 | 480" X 43.875" X 17.75 |
| Min Beam Length | 40' | 12,192 mm |
| Max Beam Width | 43.875" | 1,114.4 mm |
| Max Beam Height | 17.375" | 441.32 mm |
| Max Drill Diameter | 2" | 50.8 mm |
| Taper | ISO 45 | ISO 45 |
| Max Material Thickness | 3" | 76.2 mm |
| Drill Head Indexing | +90° / 0° / -90° | +90° / 0° / -90° |
| Tool Capacity | 12 | 12 |
| Control | CNC (Ficep Arianna 32-bit) | CNC (Ficep Arianna 32-bit) |
*Purchased by current owner with the intention to setup in new building. Plans did not materialize.
**Unit has been shrink wrapped and stored outdoors for the past 2 years.

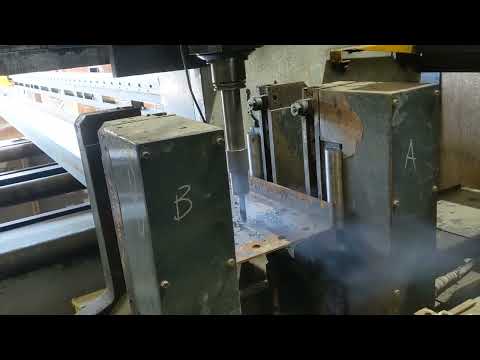

***Video taken at the time it was purchased.
****Machine was in good working order when decommissioned.
Drilling & plasma heads
Robotic plasma coping
Hypertherm MAX200 plasma cutting system
Automatic hydraulic double jaw vise (drilling)
Powered in-feed positioning & outfeed conveyors
