USED 2015 FICEP BPL

Used 2015 Ficep Beam Processing Line

- 2015 FICEP Endeavor 1204 DDRC 3 Spindle Robotic Coper
- 2015 FICEP Katana K126L Automatic CNC Horizontal Band Saw
- 2015 EMS Automated Material Handling

These machines are under power and can be seen in operation until March 2025. A factory-trained technician can be provided at extra cost for installation & operator training.

(Specifications for 2015 FICEP Endeavor 1204 DDRC 3 Spindle Robotic Coper )

-Max Profile Width: 24"
-Minimum Profile Width: 0.39"
-Max Profile Height: 48.03"
-Minimum Profile Height: 3.15"
-Layout Marking: Yes
-Power Source: Hypertherm HPR260XD
-Amps: 260
-Bevel: Yes
-Power Requirements: 440V-60Hz
-Control: CNC (Ficep Pegaso)
-Beam Capacity: 48” x 24”
-Channel Capacity: 48” x 11-3/4”
-Angle Capacity: 10” x 10” x 1-9/16”
-Drill Heads: (3) Drill Heads with ATC (Automatic Tool Changer)
-Maximum Section Weight: 48,500 lbs
-Maximum Carriage Speed: 164 FPM
-Thermal Coper: Ficep
-Plasma System: Hypertherm HPR260XD

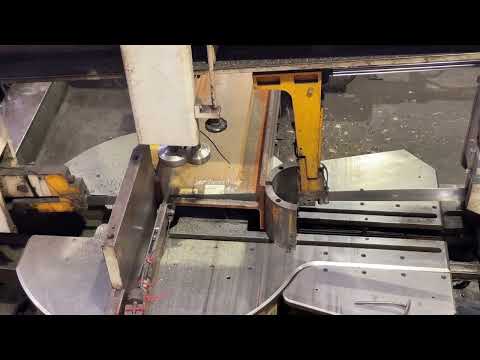

(Specifications for 2015 FICEP Katana K126L Automatic CNC Horizontal Band Saw)

-Blade Size: 2.64" x 0.063" x 413.39"
-Saw Blade Motor: 20.1 hp
-Weight: 27,778.24 Ibs
-Height:
Minimum: 3 1/8"
Maximum: 48"

-Width:
Minimum: 3/8"
Maximum: 24"

-Length:
Minimum to be Transferred: 98 7/16"

-Beam Specifications
Minimum Height: 3 1/8"
Maximum Height: 48"
Flange Minimum Width: 1 5/8"
Flange Maximum Width: 24"

-Flange Specifications
Minimum Width: 1 3/4"
Maximum Width: 11 13/16"
Minimum Height (Equal Flanges): 3 1/8" x 3 1/8" x 5/16"
Maximum Height (Equal Flanges): 9 13/16" x 9 13/16" x 1 9/16"

-Band Saw Specifications
Toothed Band Size: 2.64" x 0.063" x 413"
Toothed Band Speed: 196 - 557 FPM
Band Motor Power: 20 HP
Working Level Height: 33 7/16"
Position Weight: 48,500 lbs
Linear Weight of the Section: 730 lbs/ft

- 2015 FICEP Endeavor 1204 DDRC 3 Spindle Robotic Coper
- 2015 FICEP Katana K126L Automatic CNC Horizontal Band Saw
- EMS Automated Material Handling
