Short Stroke, High Speed, 100 - 450 SPM, Light Curtains, Feeder
| size | 60 Ton | 60 Ton |
| Tonnage | 60 T | 54.431 t |
| Stroke | 2" | 50.8 mm |
| Shut Height | 14" | 355.6 mm |
| Bed W | 23" | 584.2 mm |
| Bed L | 32" | 812.8 mm |

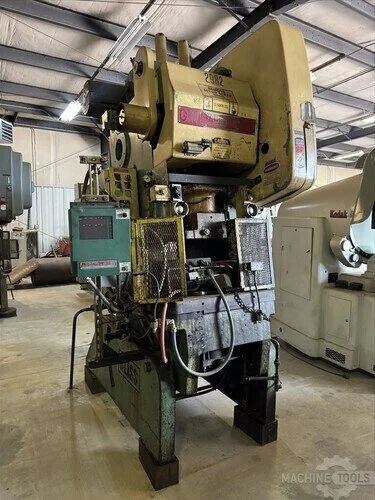

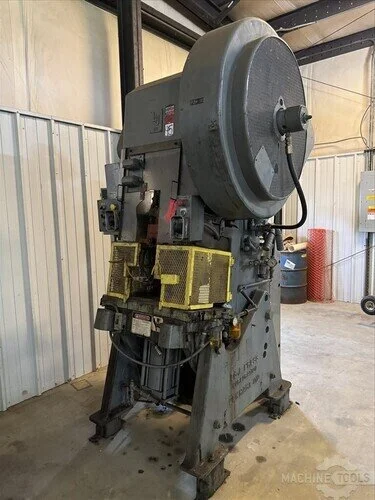

Precision Industries Model 60 HBPHS 60 Ton OBI Punch Press
Tonnage Capacity: 60 Ton
Stroke of Slide: 2"
Throat Depth: 11.5"
Strokes Per Minute: 100 - 450 SPM
Adjustment: 2"
Shut Height: 14"
Bed Size: 21" x 32"
Bolster Thickness: 5"
Main Motor Drive: 10HP
Current Electrics: 480/3/60
Link Lite Black Max Light Curtains, Press Feeder, Rapid Air
