6" x .156" Dallas #D-200-6X6, #29253
Coil Feed Types | Air Feed | Air Feed |
Max Width | 6" | 152.4 mm |
Max Thickness | 0.156" | 3.9624 mm |
Stroke | 6" | 152.4 mm |
Dimensions | 42" L-R x 35" F-B x 26" H | 42" L-R x 35" F-B x 26" H |
Weight | 200 lbs. | 200 lbs. |

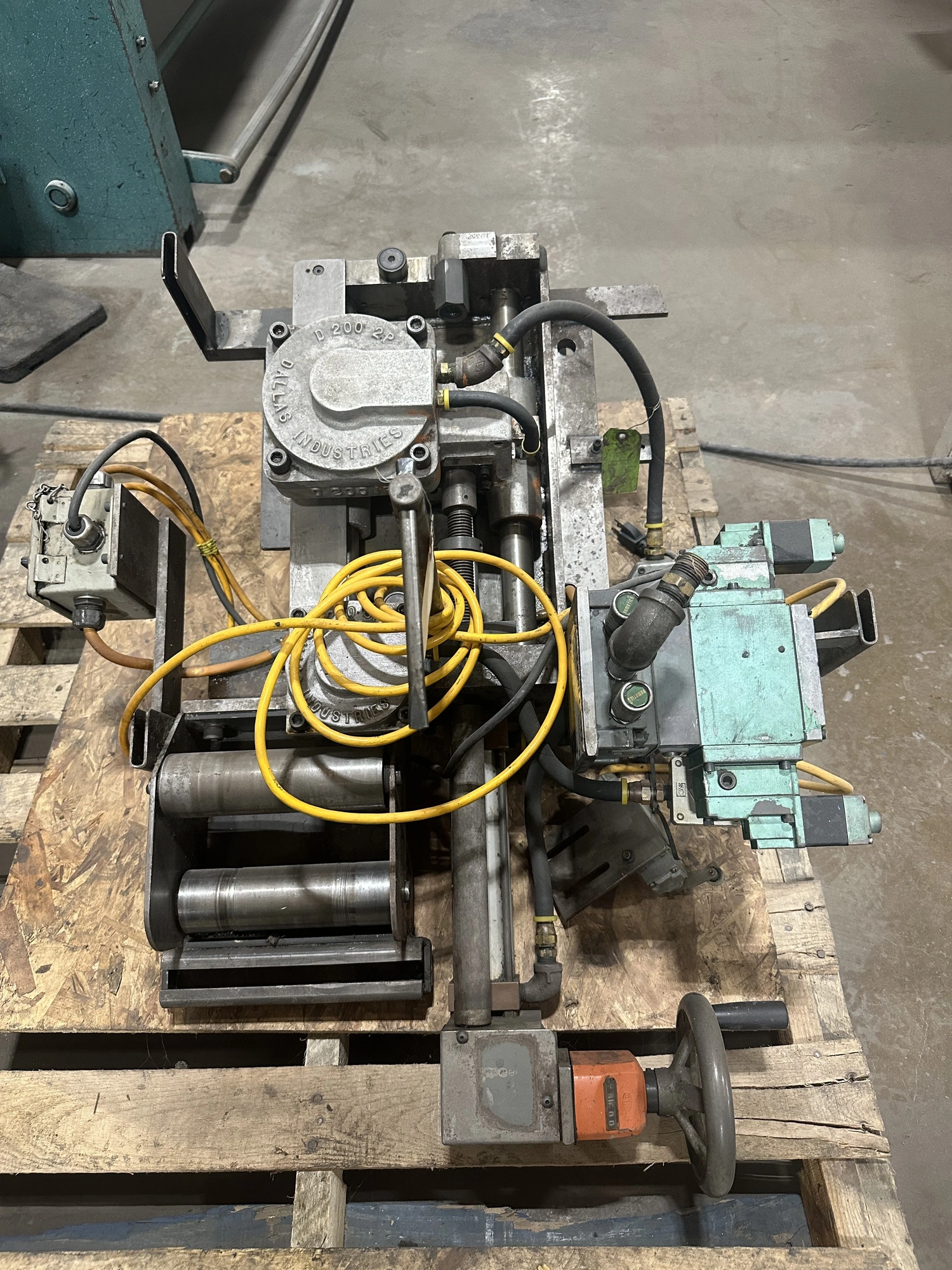

USED 6" X .156" DALLAS MODEL #D-200-6X6 AIR FEED
Model no. D-200-6X6
Stock width: 6" maximum
Stock thickness: .156" with straightener
.125" without straightener
Stroke length: 6"
S.P.M. approx.: 110
Weight approx. 200 lbs.
Overall dimensions approx. 42" L-R x 35" F-B x 26" H
Serial no. 19352
Stock no. 29253
FOB ELK GROVE VILLAGE, IL
Selector switch for pilot – run – offload - open
Stroke length adjustment via hand wheel
Press mounting brackets
