| Power Pack | 18 A | 18 A |
| Table Size-W | 19.7" | 500.38 mm |
| Table Size-L | 33.5" | 850.9 mm |
| X | 15.7" | 398.78 mm |
| Y | 9.8" | 248.92 mm |
| Z | 15.7" | 398.78 mm |

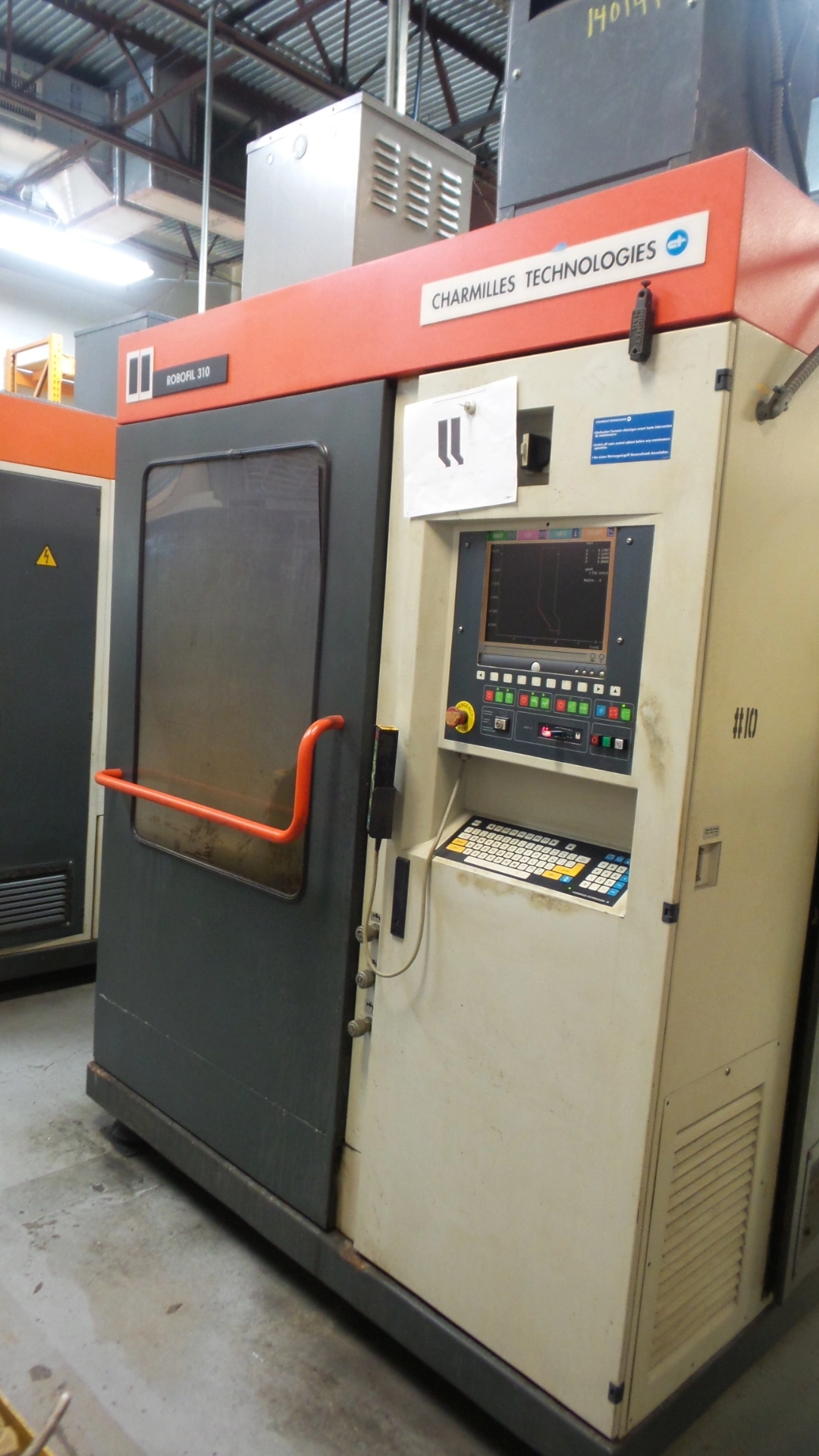

| Control | CNC (Charmilles Cnc) | CNC (Charmilles Cnc) |
| Weight | 5,700 | 5,700 |
Specifications:
Machining Stroke (X-Y-Z): 15.7″ x 9.8″ x 15.7″
Machining Stroke (U, V): 15.7″ x 9.8″
Taper Capacity: 0 to 30 Degrees
Maximum Workpiece Size: 33.5″ x 19.7″ x 15.7″
Maximum Workpiece Weight: 2,207 lbs
Wire Diameter Capability: 004″ to .012″
Wire Diameter Guides Included: 0.010″
Electrical: 380V/3PH/18Amps
Equipped With:
Charmilles CNC Control, Auto Wire Threading, 14″ Color Graphics Monitor, Remote Hand Pendant, Filtration System
Charmilles CNC Control, Auto Wire Threading, 14″ Color Graphics Monitor, Remote Hand Pendant, Filtration System
