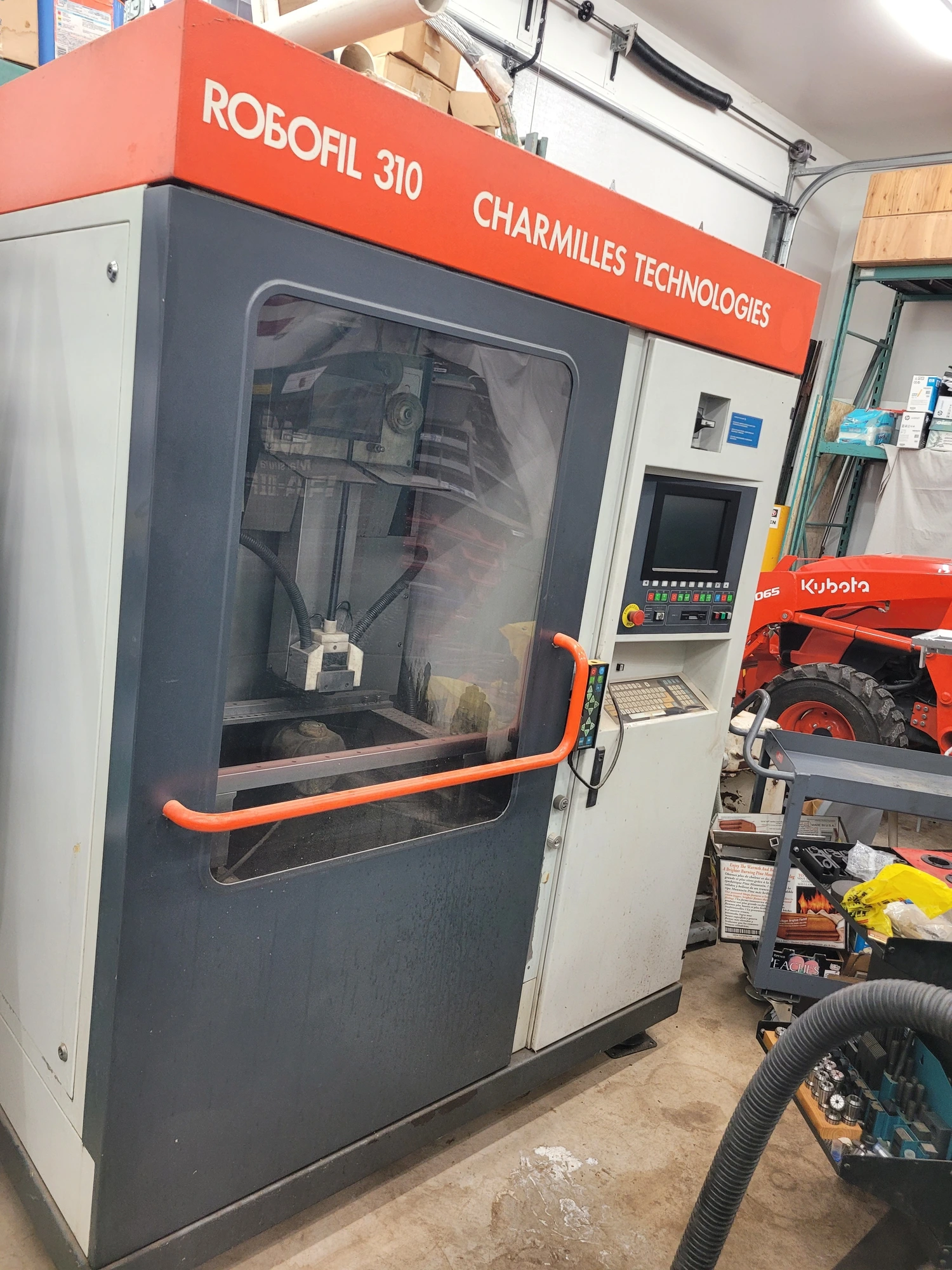

1994 Charmilles Robofil 310 Wire EDM with Charmilles Control, Floppy Disk, RS-232 Port, and Advantage ICE CUBE SC Chiller.
| X | 16" | 406.4 mm |
| Y | 10" | 254 mm |
| Z | 15.75" | 400.05 mm |
| Auto Threading (Yes/No) | Yes | Yes |
| Control | CNC (Charmilles) | CNC (Charmilles) |
| Dimensions | 71" x 63" x 88" | 71" x 63" x 88" |
| Weight | 5,700 LBS | 5,700 LBS |
Machining Stroke (X,Y,Z).................15.7" x 9.8" x 15.7"
Machining Stroke (U,V)...................15.7" x 9.8"
Taper Capacity...........................0 - 30 Degrees
Maximum Workpiece Size...................33.5" x 19.7" x 15.7"
Maximum Workpiece Weight.................2,207 lbs
Wire Diameter Capability.................004" - .012"
Electrics................................380V/3PH/60HZ
Approx. Shipping Dimensions..............71" L x 63" W x 88" H
Approx. Shipping Weight..................5,700 Lbs
Charmilles CNC Control
3.5" Floppy Disk
RS-232 Serial Port
Auto Wire Threading
14" Color Graphics Monitor
Remote Hand Pendant
Filtration System
Advantage ICECUBE SC Chiller
**MACHINE PURCHASED AND NEVER POWERED UP**
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
