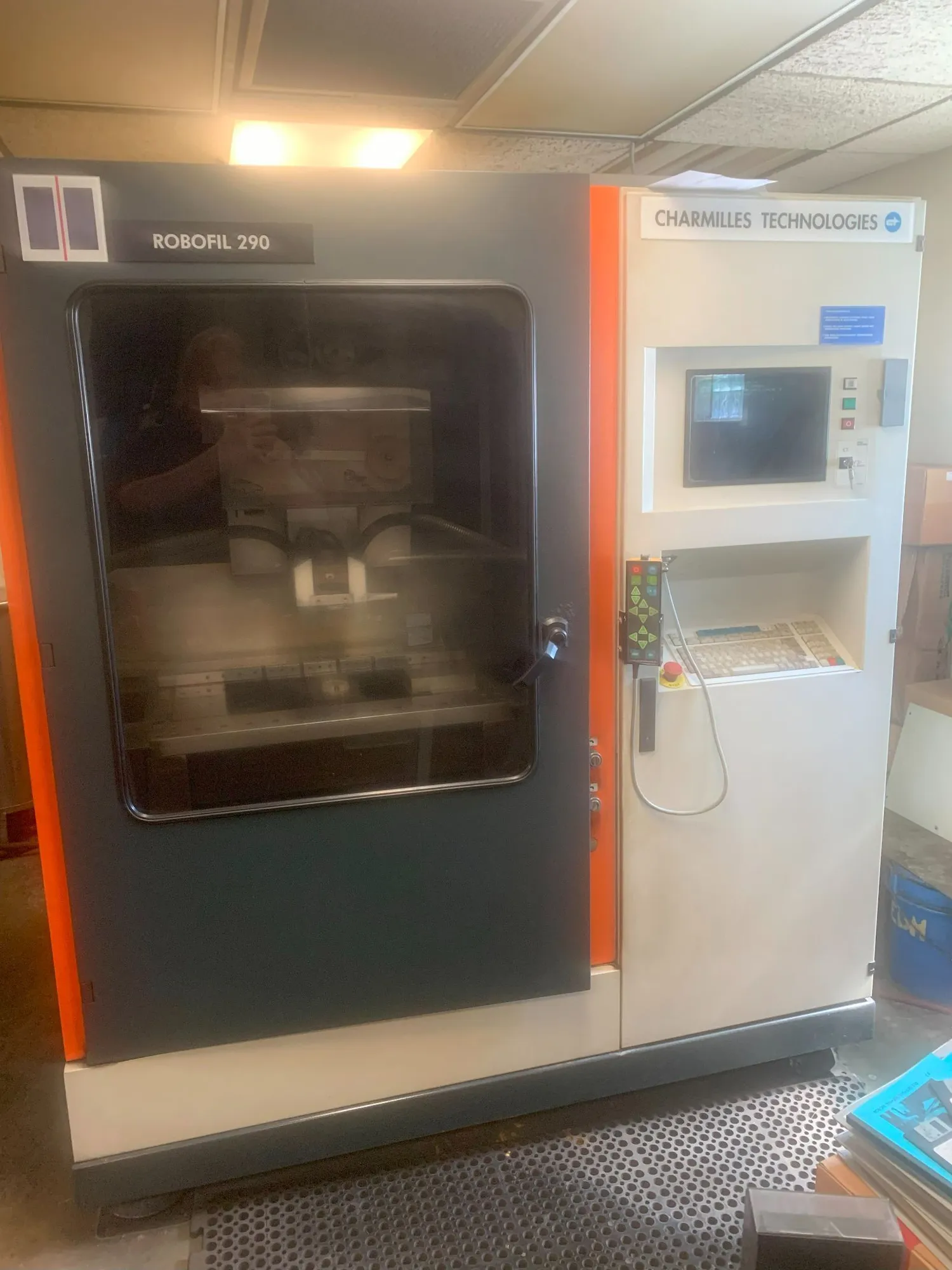

1997 Charmilles Robofil 290 Wire EDM
| X | 15.7" | 398.78 mm |
| Y | 9.8" | 248.92 mm |
| Z | 9.8" | 248.92 mm |
| Auto Threading (Yes/No) | Yes | Yes |
| Submerged (Yes/No) | No | No |
| Control | CNC (ISO PULSE Control) | CNC (ISO PULSE Control) |
| Dimensions | 70.9" x 63" x 82.7" | 70.9" x 63" x 82.7" |
| Weight | 4,850 LBS | 4,850 LBS |
Maximum Work Piece Size...........33.5" x 19.7" x 7.9"
Maximum Work Piece Weight.........1,102 LBS
Travels...........................15.7" x 9.8" x 7.9"
U-V Stroke........................15.75" x 9.8"
Taper Angle.......................± 30º
Wire Diameter.....................0.004" to 0.012"
Power Requirements................10kVA – 380V / 3 phase / 50/60 Hz
Machine Dimensions................70.9" x 63" x 82.7"
Machine Weight....................4,850 LBS
ISO PULSE Control
14" Color CRT
Automatic Wire Threading
3.5" Floppy Disk, M.D.I., RS-232 Port
Automatic Wire Alignment
Programmable Flushing
Remote Control
Chiller
Close Loop Glass Scale Feedback on All Axes
**BUYER RESPONSIBLE FOR VERIFYING SPECIFICATIONS & OPTIONS**
