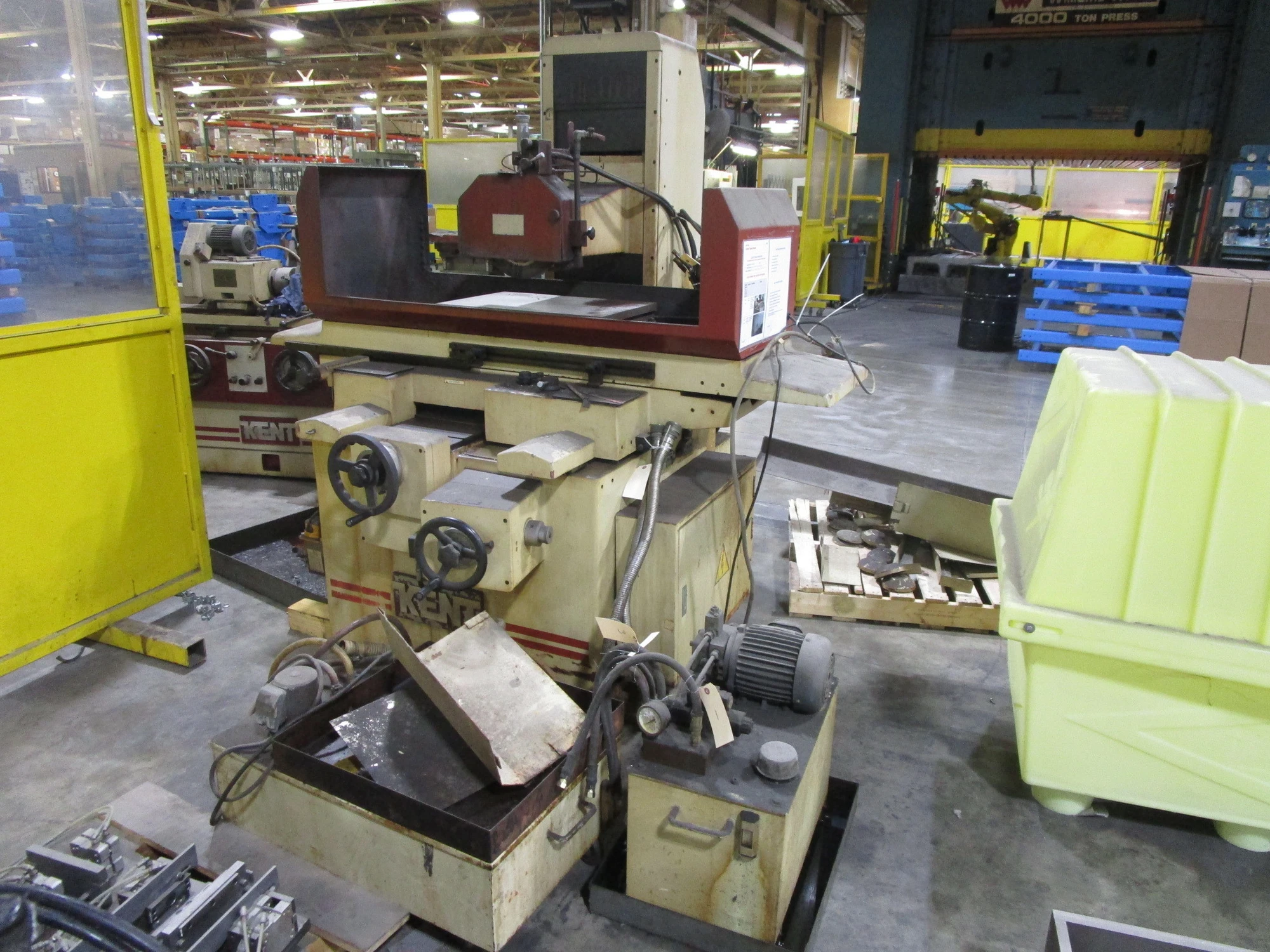

16" X 24" Used Kent 3 Axis Automatic Surface Grinder, 16" X 24" Electro Magnetic Chuck With Control, Parallel Dresser On Wheelhead, Coolant System,
| Table-W | 16" | 406.4 mm |
| Table-L | 24" | 609.6 mm |
| Horz/Vert | Horz | Horz |
| Grinding Wheel Dia. | 14" | 355.6 mm |
Table Size: 16" x 24"
Maximum Grinding Length: 17.5"
Maximum Grinding Width: 25"
Spindle center to table: 19 1/2"
Auto Downfeed Increment: 0.0002"-0.0016"
Grinding wheel: 14" x 1.25"
Spindle Speeds: 1430 RPM
Main Motor Drive: 5 HP
