Fagor 8055i FL-TCO Control
| Swing | 10" | 254 mm |
| Centers | 20" | 508 mm |
| Control | CNC (Fagor 8055i FL-TCO Control) | CNC (Fagor 8055i FL-TCO Control) |

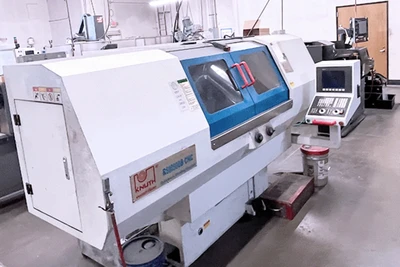

Knuth RSMB500 CNC Cylindrical Grinder, New 2017
CATALOG SPECIFICATIONS:
Center height: 5" (Swing 10”)
Workpiece length: 22"
Grinding length: 22"
Grinding diameter: 8"
X axis travel: 6"
Z axis travel: 24"
Max. table swivel range (r+l): 3° / 9°
Table feed, infinitely variable: 4 – 157 mm/min
Headstock
Work spindle speed, infinitely variable: 40 – 460 rpm
Headstock swivel range: 360° / 45° pitch
Work spindle taper: MT 4
Grinding Wheel Headstock
Grinding wheel dimensions in 16 x 2 x 8"
Tailstock
Tailstock taper: MT 4
- Inside/Outside grinding: 5 HP
Dimensions/Weight
Dimensions: 114 x 88 x 69"
Weight: 5952 lbs.
Fagor 8055i FL-TCO Control
