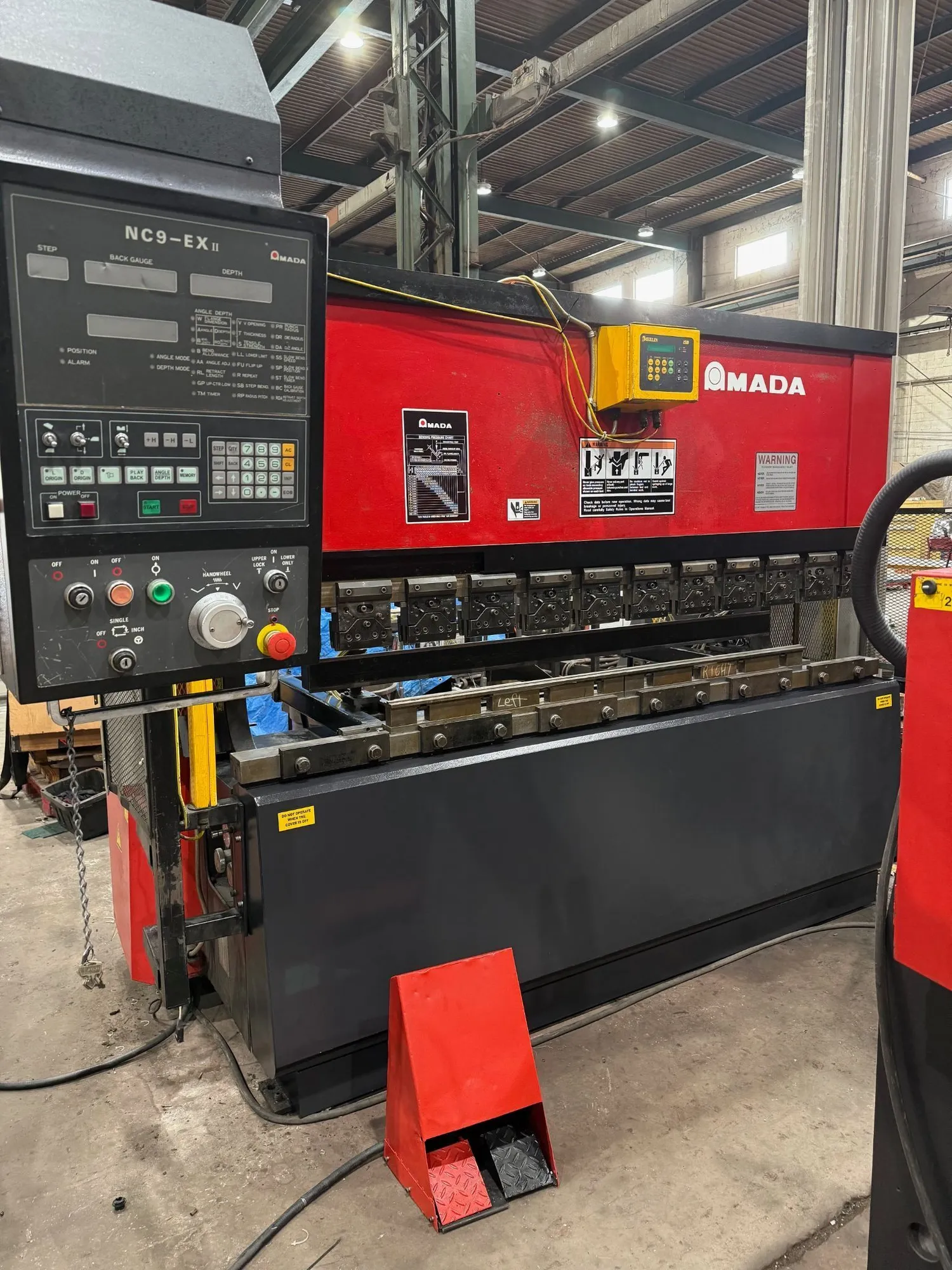

Used Amada Press Brake, Model FBD 8025 EX-II
Model FBD 8025
Maximum Tonnage 88
Maximum Bending Length 98.6
Maximum Stroke Length 3.937"
Open Height 14.57"
Throat Depth 15.7"
Distance Between Side Frames 86.6
Ram Speed: Approach 3.7 IPS
Bending .35 IPS
Return Speed 3.43 IPS
Electrical Requirements 220/460/3/60
CNC Control NC9EX II
Designed specifically to enhance computer control.
Centralized controls provide quick, easy control of tonnage, bending depth and stroke length adjustment.
Fully adjustable two speed operation.
Strategic placement of the cylinders creates an ideal deflection curve, eliminating the need to shim precision tooling. Angular accuracy is constant over the full part length.
Roller guiding system eliminates all ram/guide freeplay and wear.
Tonnage limiter and gauge protect tooling and increase safety.
Exclusive handwheel depth control simplifies set-up and reduces scrap.
Sectionalized punch holders allow deep box forming and can create windows for long return flanges
Electric Footswitch for easy Ram Control
Exclusive tool holders simplify procedures and reduce tooling set-up time.
NC9EX II Amada 3 Axis CNC Control
Merlin Light guards
