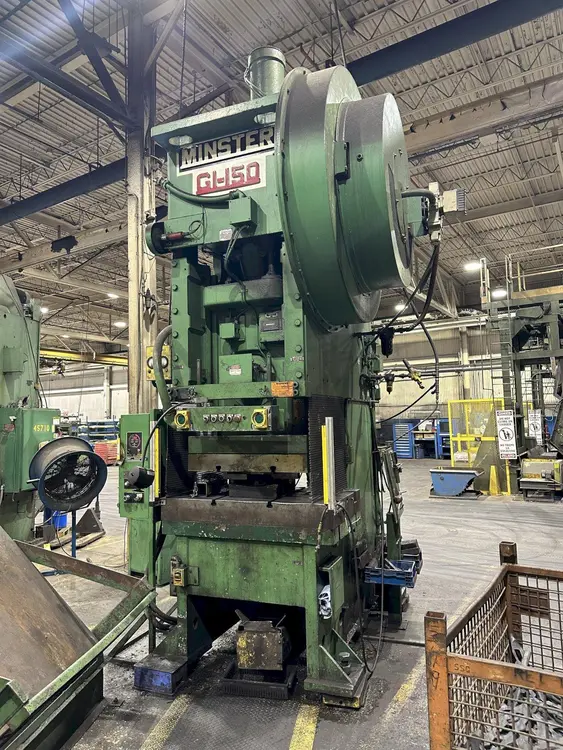

150 Ton Minster Gap Frame Mechanical Press, 50" x 30" bed area, 6" stroke, 30-60 SPM, 21" Shut Height
| Tonnage | 150 T | 136.078 t |
| Stroke | 6" | 152.4 mm |
| Shut Height | 21" | 533.4 mm |
| Bed area (Left to right) | 50" | 1,270 mm |
| Bed area (Front to back) | 30" | 762 mm |
| SPM min. | 30 strokes/min. | 30 strokes/min. |
| SPM max. | 60 strokes/min. | 60 strokes/min. |
Slide Area………………………………….. 34” x 24”
Air Clutch and Brake
Air Counterbalances
15 HP @ 1800 RPM Main Motor
Motors and Controls
SSC-1500
Motorized Ram Adjustment
DC Variable Speed Drive and Motor
Palm Buttons
T-Slotted Bolster & Slide
Recirculating Oil Lubrication System
