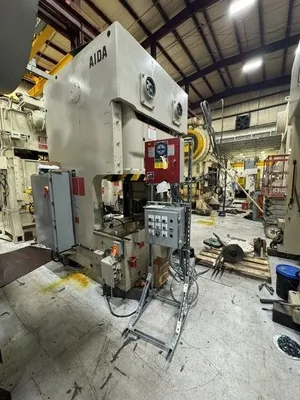

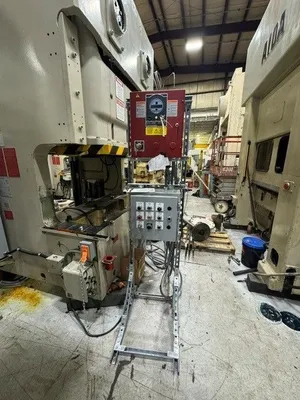

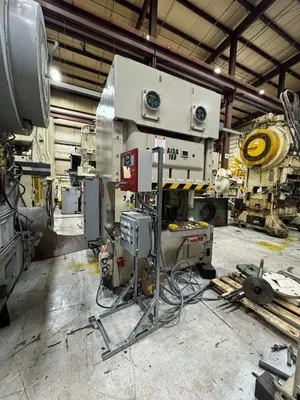

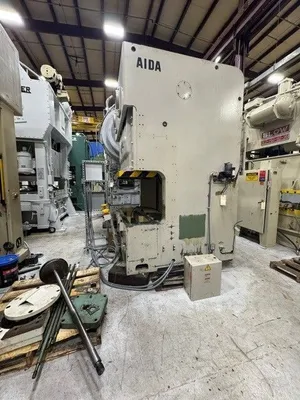

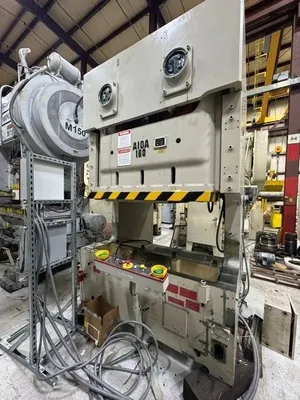

Aida 176 US Ton Gap Frame Mechanical Press, 75.2" x 33.4" bed area, 5.12" stroke, 40-85 SPM, 12.4" Shut Height
| Tonnage | 176 T | 159.665 t |
| Stroke | 5.12" | 130.05 mm |
| Shut Height | 12.4" | 314.96 mm |
| Bed area (Left to right) | 75.2" | 1,910.1 mm |
| Bed area (Front to back) | 33.4" | 848.36 mm |
| SPM min. | 40 strokes/min. | 40 strokes/min. |
| SPM max. | 85 strokes/min. | 85 strokes/min. |
| Weight | 38000 | 38000 |
Slide Area………………………………….. 59” x 22.8”
Blanking Capacity…………………………. 141 US Tons
Adjustment: 3.93”
Air Clutch and Brake Assembly
Motors and Controls
Air Counterbalances
Dual Palm Buttons
Variable Speed Main Motor
Quick Die Change Rollers
Power: 480/3/60
Dual Ross Air Valve
