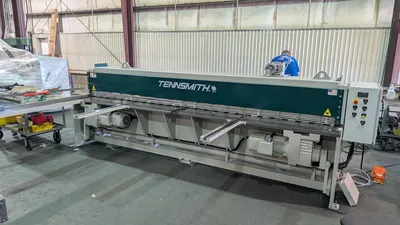

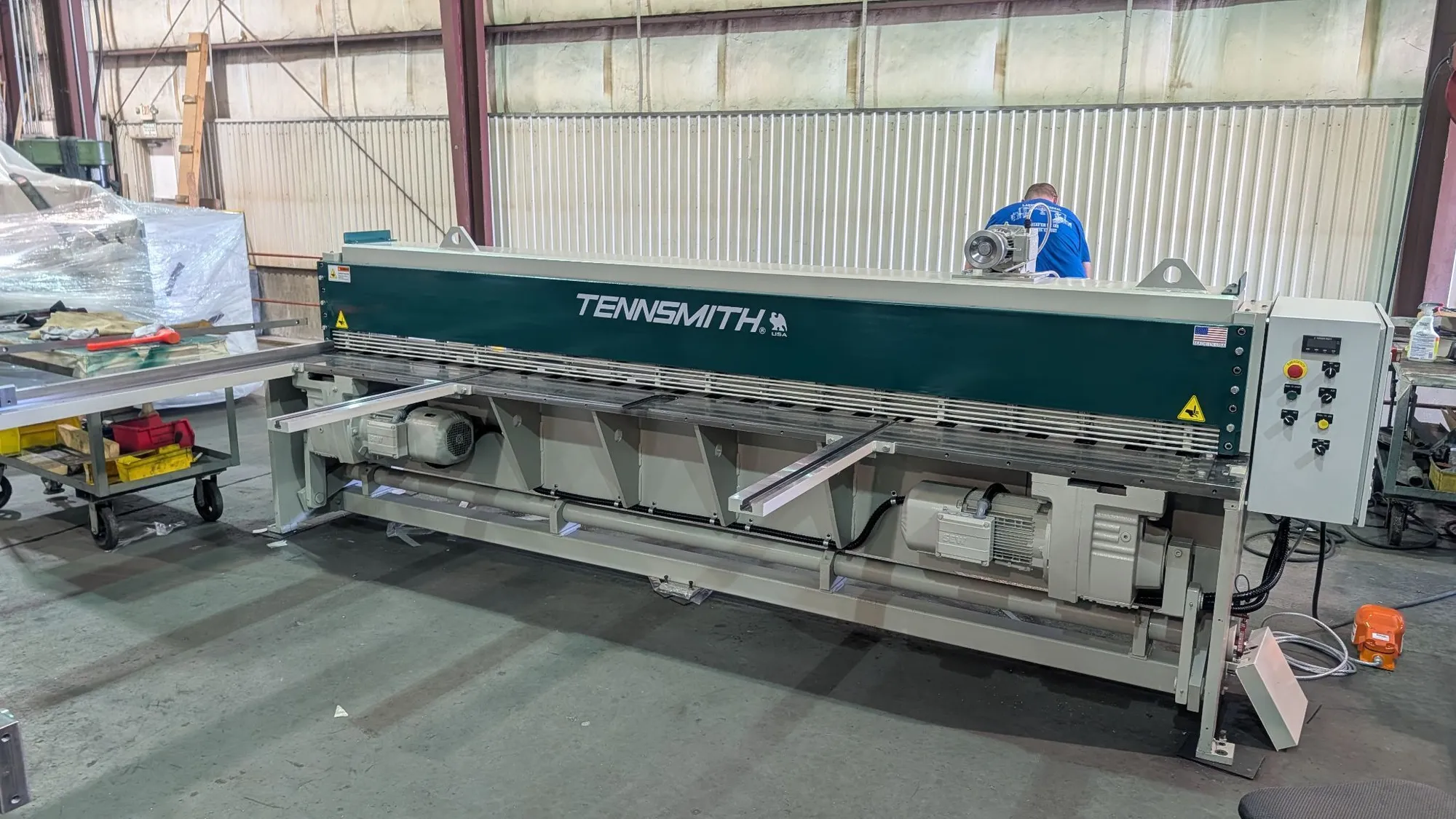

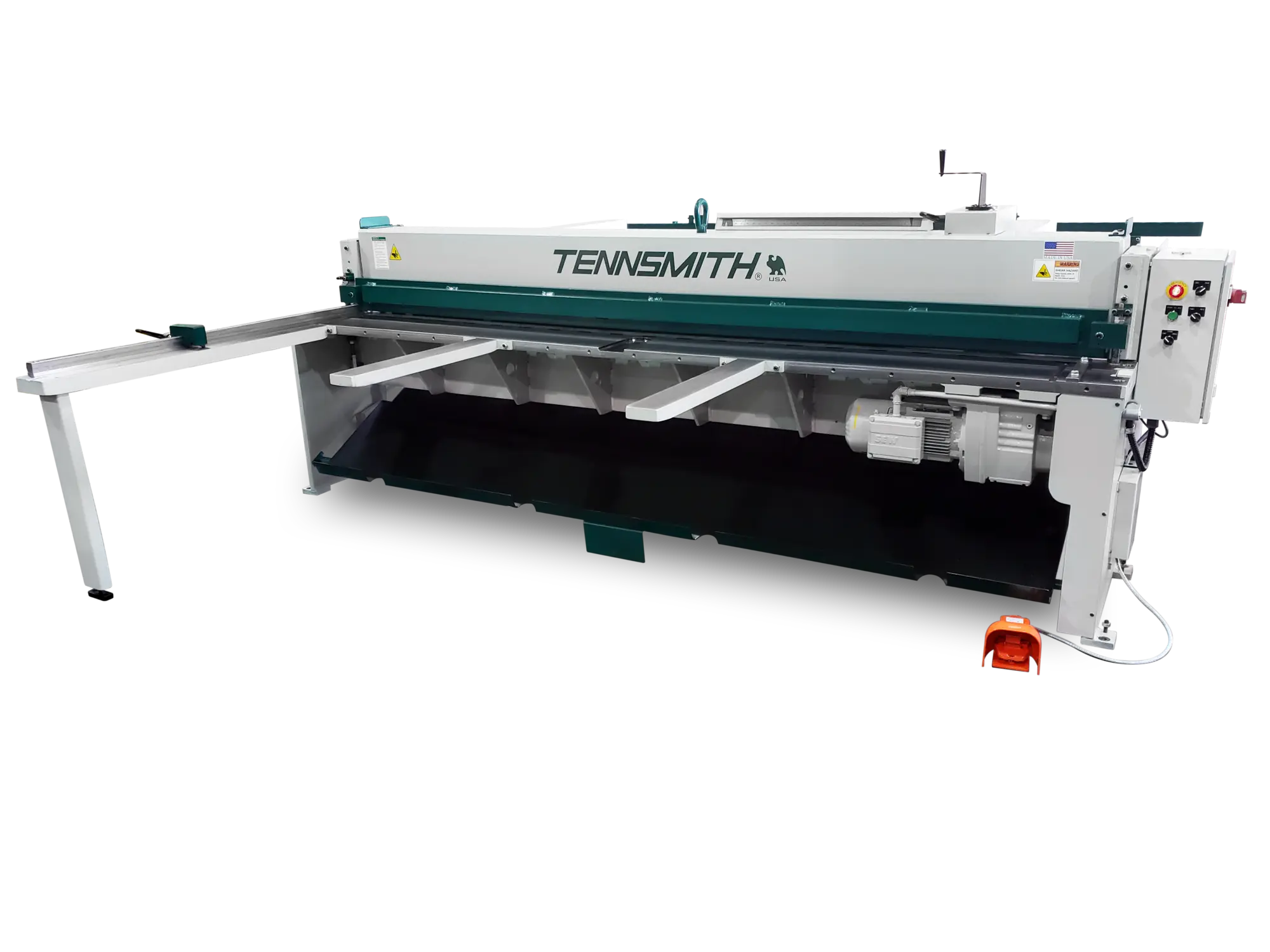

The LM series shears are standard with four-edge, high carbon, high chrome blades, independent, self-leveling hold down feet with noprene inserts, single continuous and jog stroke cycles, motor reverse switch, precision-macines table with hand well, dual inch/metric inlaid bed scales and non-metallic gibs.
| Max Gauge | 10 gauge | 10 gauge |
| Length of Blade | 120" | 3,048 mm |
| Hyd/Mech | MECH | MECH |
| Power | 12.5 hp | 9.3 kW |
| SPM | 31 strokes/min. | 31 strokes/min. |
Capacity Mild Steel
10 Gauge
3.5 mm
Capacity, Stainless Steel
14 Gauge
2.0 mm
Maximum Cutting Length
121 in.
3073 mm
Back Gauge Range
30 in.
762 mm
Strokes Per Minute, Full Length
35
Motor-230/460v,3-PHASE, 60Hz
12.5 hp
Numbers of Holddowns
16
Floor Space, Gauges in Position
145 x 78 x 60 in.
3683 x 1981 x 1524 mm
Shipping Weight
9400 lbs
4272 kg
