| Swing | 21.65" | 549.91 mm |
| Machining Length | 47.24" | 1,199.9 mm |
| Chuck Size | 10" | 254 mm |
| Bar Capacity | 3.94" | 100.08 mm |
| Power | 29.5 hp | 22 kW |
| Max RPM | 5,000 RPM | 5,000 RPM |
| Turning Dia | 13.78" | 350.01 mm |
| Live Tooling | Yes | Yes |
| Sub Spindle | Yes | Yes |
| Control | CNC (OSP-P200L Thinc CNC Control) | CNC (OSP-P200L Thinc CNC Control) |
Specifications (subject to buyer verification):
Swing Over Bed: 21.65”
Maximum Turning Diameter: 13.78”
Distance Between Centers: 47.24”
Maximum Turning Length: 7.87”
XA Travel: 10.63”
XB Travel: 9.06
ZA Travel: 36.61
ZB Travel: 36.22”
W Travel 37.01”
Y Travel: +/- 3.15”
Synchronous C – 360 Degrees in 0.001 Degree Increments
Spindle Speeds: 5,000 RPM
Spindle Diameter: 3.94”
Spindle Drives: 29.5 HP
Chucks: Kitagawa B-210 10” 3-Jaw Hydraulic
Equipped With (subject to buyer verification):
Okuma OSP-P200L Thinc CNC Control

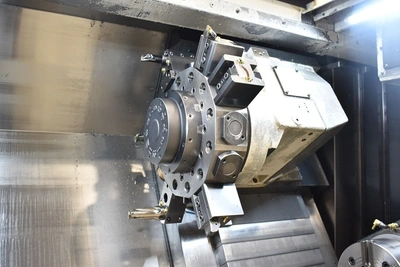

V12 Upper & Lower Turrets with Live Milling
JIS A2-6 Left & Right Spindles
Chip Conveyor
Mist Collector
Parts Catcher
Coolant
