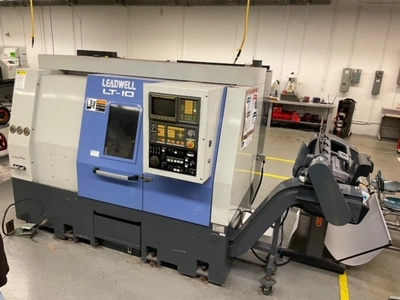

USED 1998 LEADWELL LT-10

Max Swing .................................................................................................. 19.6”
Max Turn Diameter ....................................................................................... 9.8”
Max Turn Length ........................................................................................ 13.4”
Bar Capacity ................................................................................................ 1.65”
Max Part Weight ..................................................................................... 250Lbs
Rapid Traverse ......................................................................... 787X/ 944Z IPM
Spindle Motor ........................................................................................... 10 HP
Spindle Nose ............................................................................................... A2-6
Spindle Speed .................................................................................... 5,000 RPM
Tail Stock Quill Travel .................................................................................... 12”
Turret Stations ................................................................................................. 12
Machine Dimensions ......................................................... 93”L x 70”W x 70”H
Machine Weight ................................................................................. 9,900 Lbs.

Equipped With:
6" 3 Jaw Chuck
Fanuc OT Control
Tail Stock
Chip Conveyor
Coolant Tank & Pump
45 Degree Slant Bed Construction
