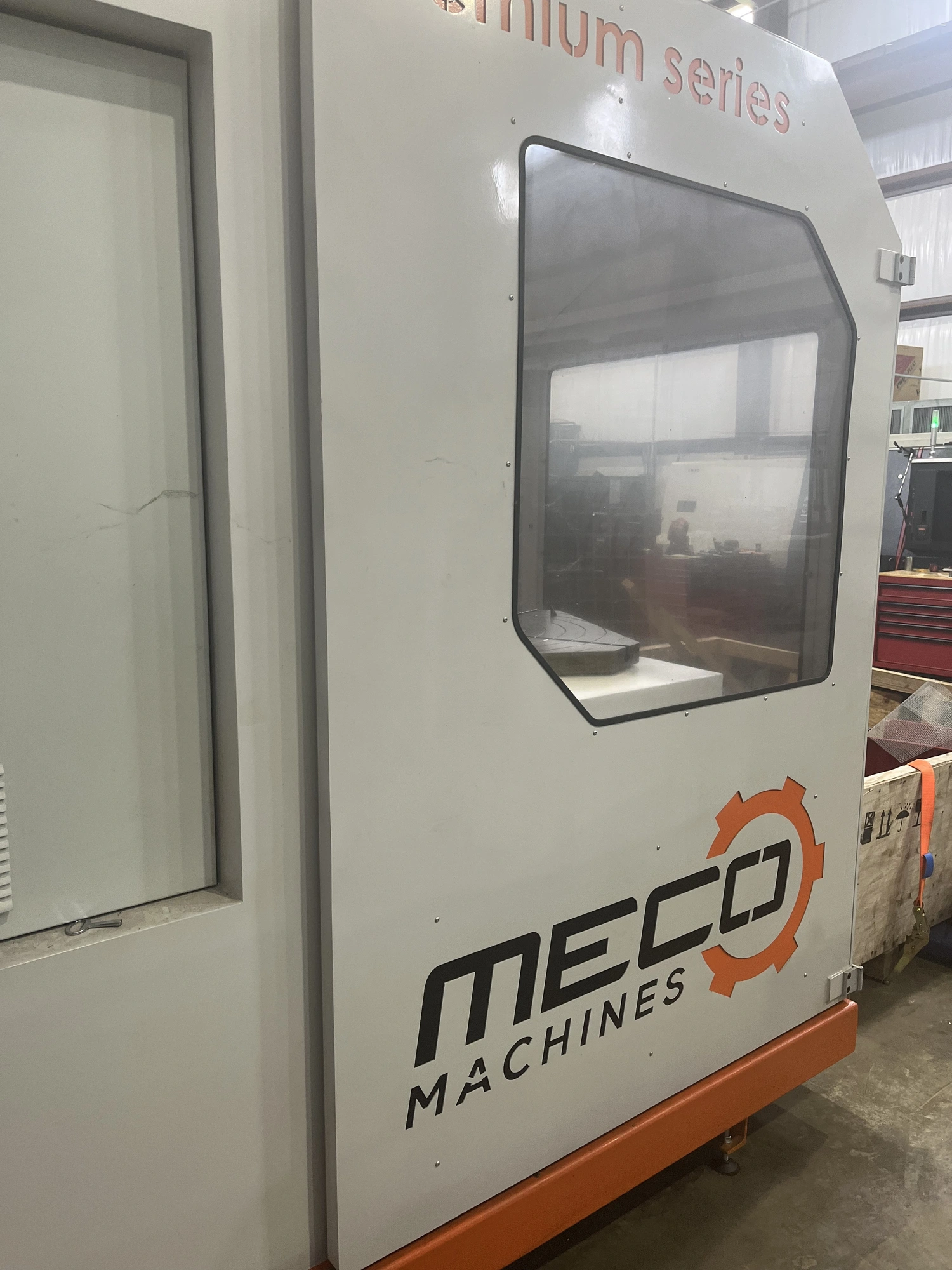

NEW 2025 MECO MEC 100 PREMIUM CNC

2022 MECO MEC-100 CNC PREMIUM KEYSEATER
MECO MEC-1 was the first vertical keyseater with a tool-width length of cut. Twenty years later, MECO has set up more than 500 units in 30 countries and has improved its keyseaters to levels of efficiency, speed, and precision that place them at the forefront of the world, among the largest manufacturers of powerful multinational industrial groups.

Nowadays, MECO keyseaters remain faithful to their original architecture and design: a‘C’-shaped body made out of an iron cast part, a robust shaft, and a cobalt tool guiding the notching dimensions throughout the process: ingenuity, simplicity, effectiveness, economy, and strength. MECO keyseaters are designed, built and developed with ingenuity and passion.

The incorporation of the most innovative mechanical and electronic technologies makes MECO keyseaters the most versatile, precise, and reliable metal-cutting machines. MECO’s touch screens simplicity and own software brings perfect notching within the reach of even the most modest workshop. It also offers high productivity (for its speed, ergonomics, and simplicity in the entire process) and unrivaled profitability.

• A (Machine width without touch screen): 1500 mm
• A’ (Maximum width with touch screen): 2100 mm
• B (Maximum Deep of machine): 2200 mm
• C (Maximum Machine Height): 3100 mm
• D (Maximum Diameter of sample): 1000 mm
• E (Machine light) 750 mm
• Weight of the machine: 3020 kg

Specifications of Z Axis (automatic)
Maximum Z Axis Speed 15 m/min
• Z Axis Stroke 685 mm
• Power Motor Z Axis 3500 W
• Maximum Working Power 14 kN
• Gearbox Relation 40:1

Specifications of Y Axis (automatic)
• Maximum Y Axis speed 0.375 m/min
• + Stroke in Y Axis 320 mm
• - Stroke in Y Axis 40 mm
• Power Motor Y Axis 2000 W
• Maximum Working Power 187 kN
• Gearbox Relation 28:1

Specifications of W Axis (automatic)
• Maximum rotation speed W axis 10 RPM
• Total degrees rotation w 360º
• Total Engine Power W axis 2000 W
• Maximum Torque 1.0 kNm
• Reduction ratio 1:1
• Dimensions of rotary plate 800 x 800 mm

Electrical Parameters
• Aparence Power: 12450 VA
• Volts: 400V
• Frequency: 50Hz.
• Connection: III+N+T
Specs Prior to Conversion to UL Specifications for US market. Machine has been converted to UL.

This spectacular machine is our largest standard keyseating machine. Its 3.5m height offer an imposing presence. It fits workpieces of up to 1000mm diameter and 650mm height (approx.), 100mm diameter main axis; it offers a unique-in-the-market extreme working precision thanks to its new Renishaw encoder and hydraulic brakes placed under the work table.
