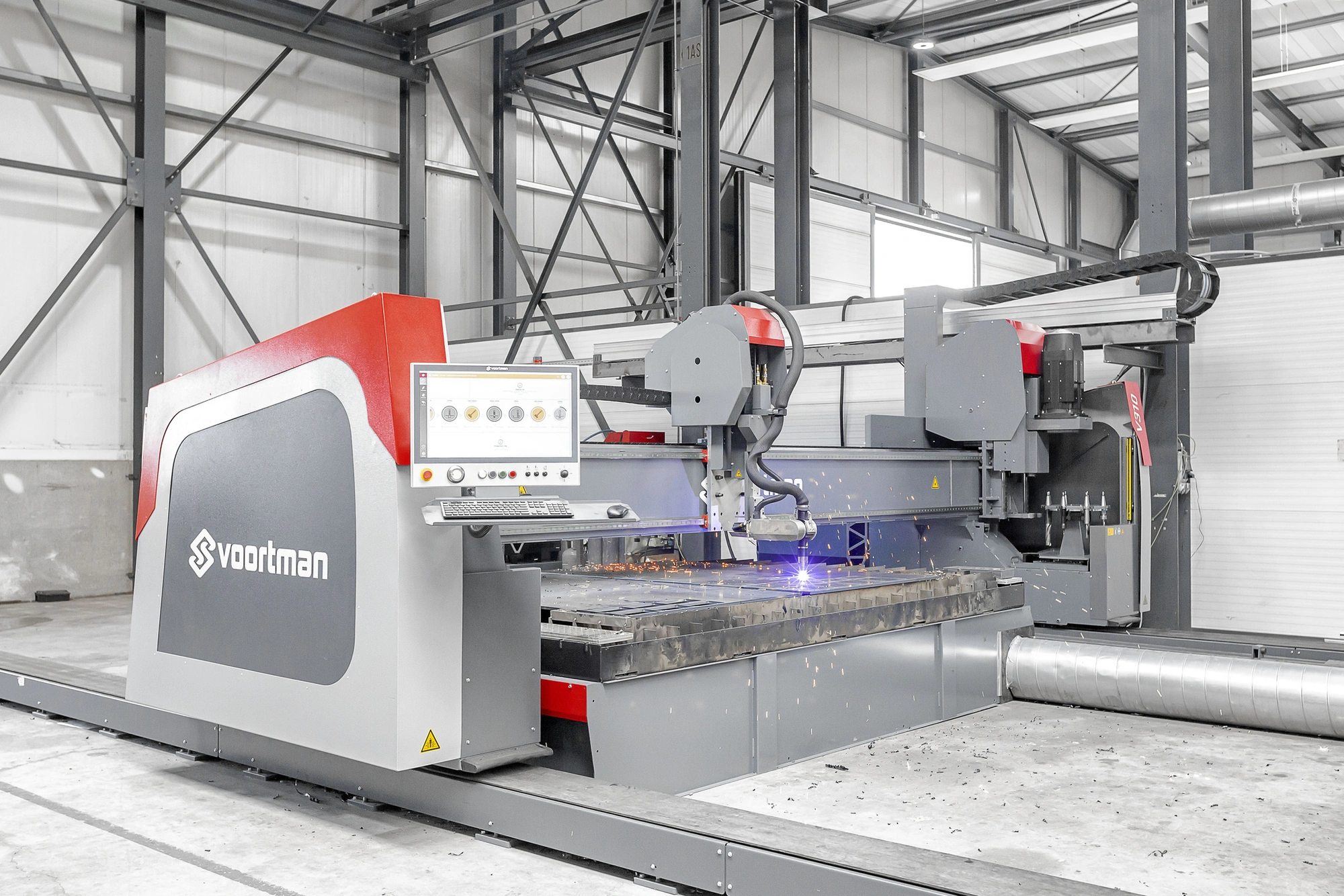

NEW VOORTMAN V310

Overview
Manufacturer:
VOORTMAN
Model:
V310
Stock #:
1190
Status:
For Sale
Description

The Voortman V310 fully automates carbide drilling, 3D bevel cutting, and contour milling. It maximizes productivity and uptime, providing valuable progress information through a dashboard. With VACAM Scheduling and VACAM Buffering, unmanned operation is possible. Products from the V310 meet three main objectives: high quality, automation, and cost reduction.

Specifications
Effective Cutting Length13' - 100'13' - 100'
Effective Cutting Width6' - 10'6' - 10'
Table TypeDown DraftDown Draft
Nesting SoftwareSigmanest TechnoSigmanest Techno
Layout MarkingYesYes
Power SourceHypertherm XPR300Hypertherm XPR300
Amps300300
Number of Oxy-Fuel Torches11
Max Material Thickness4"101.6 mm
BevelYesYes
Number of Spindles11
Max Hole Diameter1.58"40.132 mm
Tool Changer88
ControlCNC (VACAM Control)CNC (VACAM Control)

Working width: 1,5 - 3* meter, 6 - 10* feet
Working length: 3 - 30* meter, 13 - 100* feet
Cutting speed: 0 - 7.000 mm/min, 0 - 23 f/min
Rapid traverse speed: 20.000 mm/min, 65 f/min
Maximum cutting thickness: (if oxy-fuel is attached) 200 mm, 8 inch
Maximum drilling thickness: (depending on available tool lengths) 200 mm, 8 inch
Marking: YES
Maximum torque: 405 Nm
Drilling speed: 0 - 3,500 rpm (stepless)
Main tool changer 8 tools
Additional tool changer: 20 tools
Drill holder: SK40
Drill diameter: 5 - 40 mm, 13/64 - 1-37/64 inch
Thread tapping: M6 - M30
Max. number of plasma (bevel) torches: 1
Other optional units: 1 oxy-fuel torch

*Wider width and longer lengths available on request
