NEW VOORTMAN V325

Overview
Manufacturer:
VOORTMAN
Model:
V325
Stock #:
1191
Status:
For Sale
Description

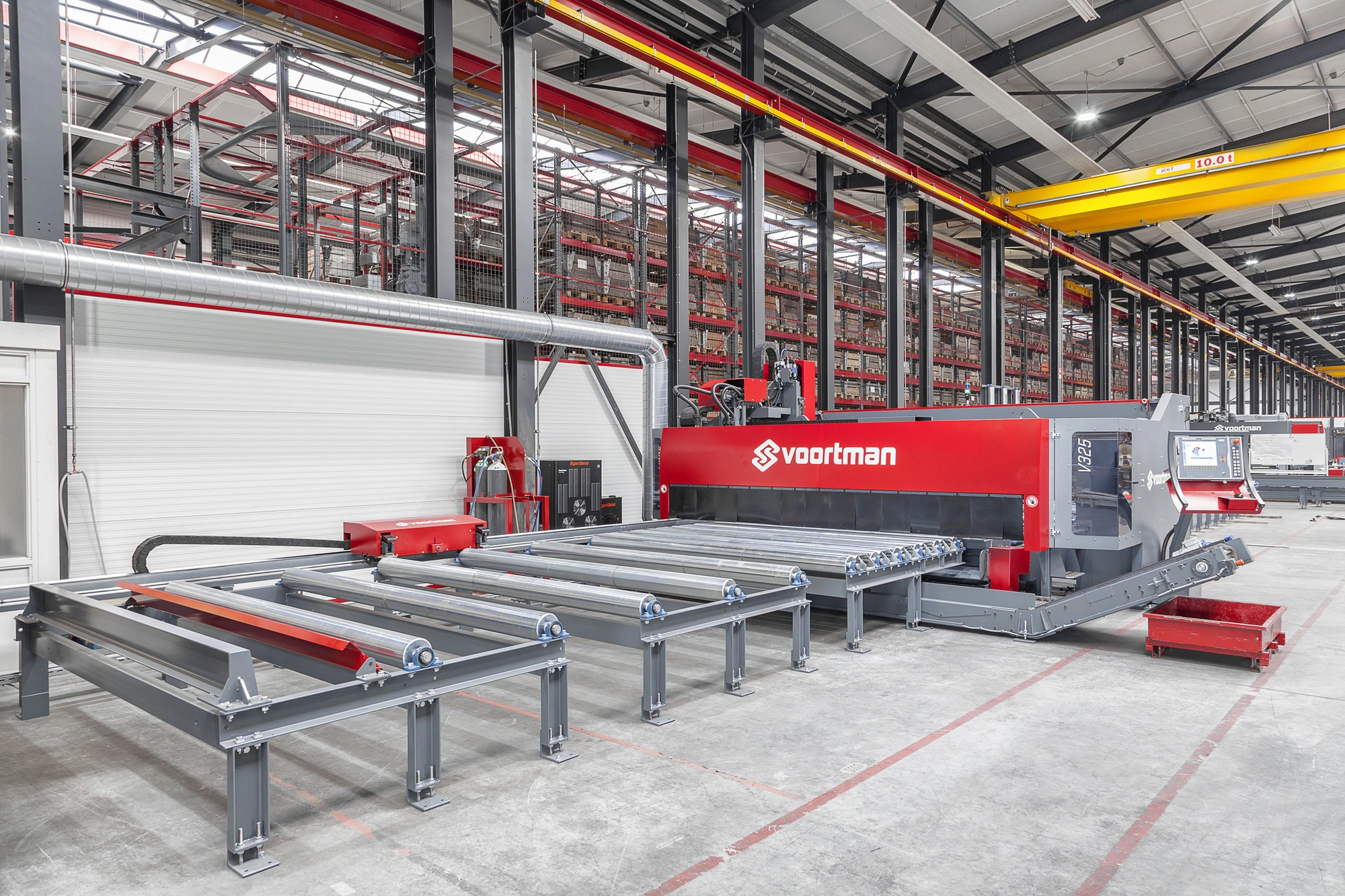

Equipped with a massive drilling head and a 20-tool automatic tool changer, the Voortman V325 is an indispensable plate processing machine for steel construction companies. The V325 efficiently handles a wide range of plate thicknesses, ranging from 6 mm / 1/4” to 100 mm / 4”. By using carbide drilling for holes up to 70 mm, it significantly reduces processing time compared to milling, especially for heavy plates. The machine's 3D plasma bevel and oxy-fuel cutting capabilities ensure precise bevel cuts and weld preparations, facilitating immediate assembly and welding with top-notch quality.

Moreover, the V325 boasts additional features such as bottom-side deburring, Instant Cut Technology, and progressive safety measures, reinforcing Voortman's commitment to pioneering unparalleled technological advancements in the realm of steel processing machinery.

Specifications
Minimum Plate Thickness0.25 in
Max Plate Thickness4"101.6 mm
BevelYesYes
Marking Unitmilling/plasmamilling/plasma
Max Hole Diameter0"0 mm
Positioning Weight20,000 lb9,071.9 kg
Weight31,000 lbs31,000 lbs

Operating range: 10 x 20ft, 10 x 30ft, 10 x 40ft
Thickness: 1/4 - 4 in
Positioning weight: 20,000 lbs
Drilling and positioning: Servo motors
Positioning speed X: 98-1/2 f/min
Positioning speed Y: 88-1/2 f/min
Positioning speed Z: 59 f/min
Marking: milling/plasma
Drilling and plasma 3D bevel units: 1
Maximum torque drill head: 450 lbf*ft
Speed drill head: 0 - 3,500 rpm (stepless)
Tool changer: 2 x 10
Drill holder: CAT50
Drill diameter: 13/64 - 2-3/4 inch
Thread tapping: M6 - M36
Plasma: up to 400 (amp)
Oxy-fuel: 1
Machine weight (base): 31,000 lbs
