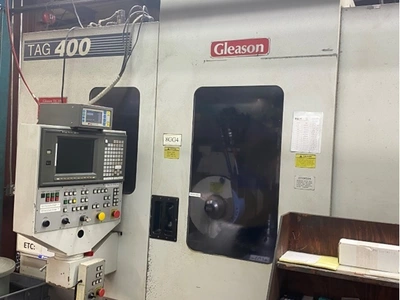

This GLEASON TAG 400 CNC Gear Grinder is optimal for generating grinding of spur/helical gears. Comes with Fanuc control, dressing unit, balancing system, and oil filtration. Max workpiece diameter: 15.7".
| Generating Grinding | YES | YES |
| Profile Grinding | NO | NO |
| Internal Grinding | NO | NO |
| Worm Grinding | NO | NO |
| Workpiece Diameter (max.) | 15.7" | 398.78 mm |
| Distance Between Center Above Table (min.) | 8" | 203.2 mm |
| Distance Between Center Above Table (max.) | 31.5" | 800.1 mm |
| Module | 0.5-8 | 0.5-8 |
| Swivel Angle (min.) | -45° | -45° |
| Swivel Angle (max.) | 45° | 45° |
| Diametral Pitch | 3 dp | 3 dp |
| Maximum Workpiece Length | 23.5" | 596.9 mm |
| Control Manufacturer | Fanuc | Fanuc |
| Control | CNC (FANUC 150-M) | CNC (FANUC 150-M) |
| Weight | 19,550# | 19,550# |
Fanuc 150M CNC Control
Pendant Controller
Wendt CNC Dressing Unit
SBS Wheel Balancing System
Oberlin Oil Filtration System
