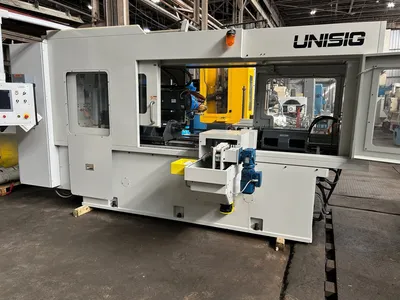

Production deep hole drilling applications are handled with confidence on UNI series machines, built for high accuracy at high volumes, and configurable to build the ideal solution for these demanding applications. UNI machines make the most impact with the least cost by intelligently combining proven components with valuable technologies, developed through our own expertise, and tailored to your drilling needs.
| Max Dia. Hole Drilled | 25 mm | 0.9843" |
| Max Drilling Depth | 249 mm | 9.8032" |
| # Spindles | 2 spdl | 2 spdl |
| Control | CNC (SIEMENS) | CNC (SIEMENS) |
| Dimensions | 185" x 99" x 98" | 185" x 99" x 98" |
| Weight | 14,000# | 14,000# |
Specifications:
Number of Spindles: 2, 4
Process Type: Gundrill
Hole Location: On-Center
Workpiece Shape: Cylindrical
Minimum Hole Diameter: 8 mm
Maximum Drill Diameter: 25 mm
Maximum Hole Diameter: 25 mm
Maximum Hole Depth: 250 mm
Workpiece Dimensions: 750, 1000, 1500 mm
Maximum Workpiece Weight: 25 kg (55 Lbs)
Spindle Motor: 15 Kw
Spindle Speed: 3,000 RPM
Drilling Depth: 249 mm
Feed Rate: 5004 mm/min
Siemens Controller
Magazine Loader
High Pressure Coolant System
Indexable Gun Drilling
