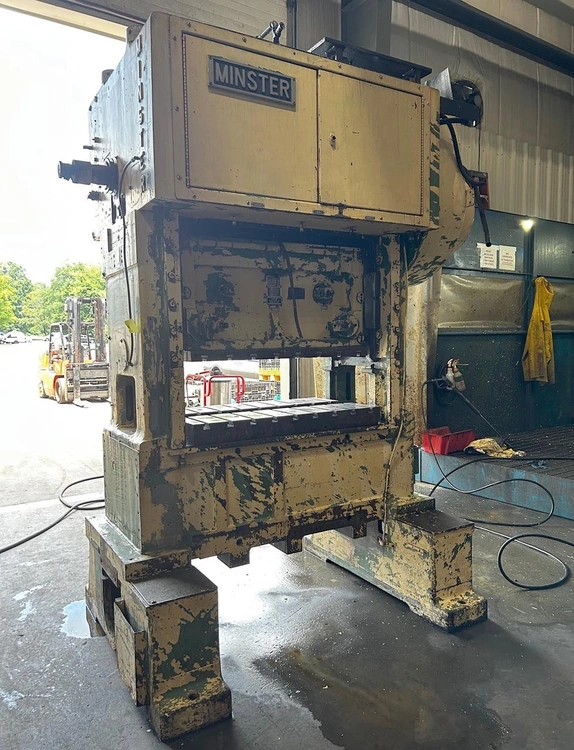

Minster 400 Ton Hevistamper Straight Side Mechanical Press. 108" x 54" Bed area, 14" Stroke, 31" Shut height over bolster plate, and 20-40 SPM.
| Tonnage | 400 T | 362.874 t |
| Stroke | 14" | 355.6 mm |
| Shut Height | 31" | 787.4 mm |
| Bed area (Left to right) | 108" | 2,743.2 mm |
| Bed area (Front to back) | 54" | 1,371.6 mm |
| SPM min. | 20 strokes/min. | 20 strokes/min. |
| SPM max. | 40 strokes/min. | 40 strokes/min. |
| Adjustment | 10" | 254 mm |
| Windows Width | 38" | 965.2 mm |
Model Number............................................... E2-400-108-54
Serial Number……………………………… E2-400-16968
Bed Area........................................................ 108” x 54”
Slide Area………………………………….. 108” x 54”
Stroke............................................................. 14”
Strokes per Minute.........................................20-40
Shut Height……………...................... 41” over bed
Shut Height………………………………… 32” over bolster plate
Bolster Plate……………………………….. 9” thick t-slotted plate
Slide Adjustment............................................ 10”
Windows…………………………………… 38” wide approx..
Air Clutch and Brake Assembly
Model#: 132-GC
Air Counterbalances
Hydraulic Tie Rod Nuts
Recirculating Lube System
T-Slotted Ram and Bolster
Dual Ross Valve
8 Point Gibbing
Floor Standing
Motors and Controls
New Toledo Integrated Systems Press Controller
Floor Standing Console Mounted
AC Variable Speed Drive and Motor
