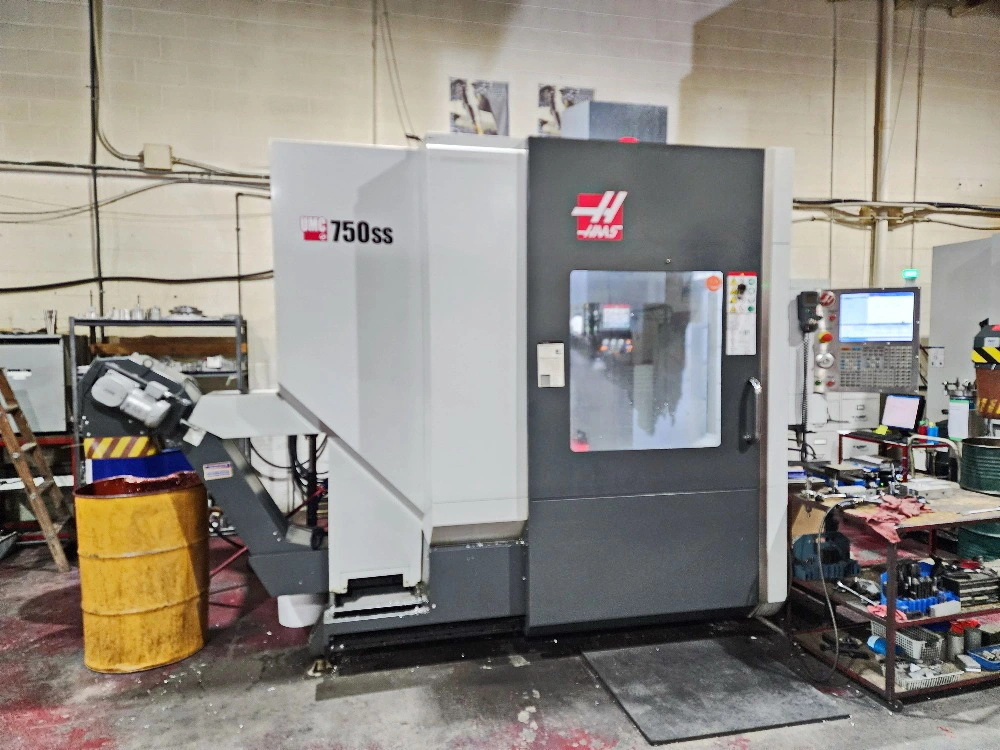

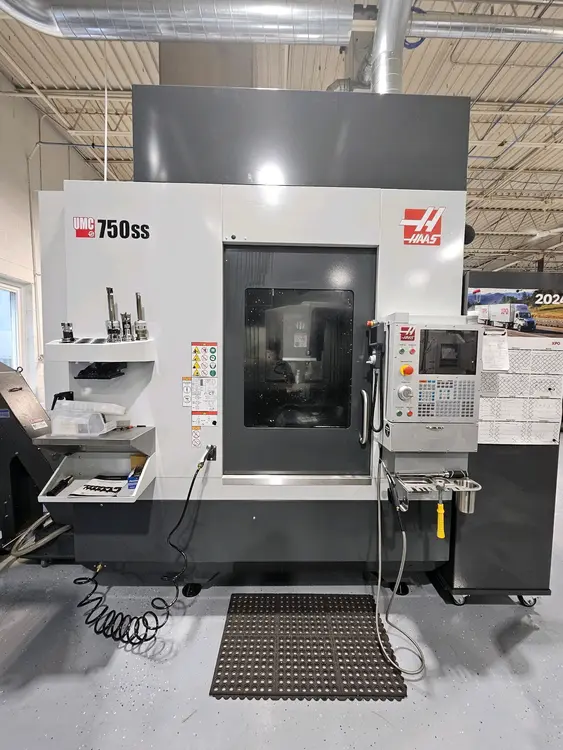

2016 Haas UMC-750SS 5-Axis Vertical CNC Machining Center, TSC, Auxiliary Coolant Filter System, Programmable Coolant Nozzle, Chip Conveyor, Wireless Intuitive Probing, Spindle Orientation
X-Axis | 30" | 762 mm |
Y-Axis | 20" | 508 mm |
Z-Axis | 20" | 508 mm |
B-Axis | +110˚~ -35˚ | +110˚~ -35˚ |
C-Axis | 360˚ | 360˚ |
# Axis | 5 | 5 |
Power | 30 hp | 22.4 kW |
RPM | 15,000 RPM | 15,000 RPM |
# ATC | 40 | 40 |
Table-W | 19.7" | 500.38 mm |
Table-L | 24.8" | 629.92 mm |
Max Table Load | 660 lb | 299.4 kg |
Rapid Traverse | 1,200 in/min. | 30.5 m/min. |
Made In | United States | United States |
Control | CNC (HAAS) | CNC (HAAS) |
Dimensions | 160" X 94" X 110" | 160" X 94" X 110" |
Weight | 19,000 lb | 19,000 lb |
High-speed roller-cam trunnion table
Through spindle coolant (300 psi)
Auxiliary coolant filter system
Programmable coolant nozzle
Belt chip conveyor
High-speed machining w/look-ahead
Dynamic work offsets
Wireless intuitive probing System
Spindle orientation
Power-failure detection module
Rigid tapping
