| X | 25.6" | 650.24 mm |
| Y | 17.7" | 449.58 mm |
| Z | 16.5" | 419.1 mm |
| Auto Threading (Yes/No) | 'Yes' | 'Yes' |
| Submerged (Yes/No) | 'Yes' | 'Yes' |
Excellent Condition
Hyper i CNC Control
25.59" X-Axis Travel
17.7" Y-Axis Travel
16.53" Z-Axis Travel
±3.0" U Axis Travel
±3.0" V Axis Travel
35.8" x 27.9" Table Size
42.12" x 34.64" Inside Tank Dimensions
39.37"L x 31.49"W x 15.74"HMax Workpiece Dimensions
17.91"Maximum dielectric fluid height
Max Workpiece 3,306 lbs
15° Taper Cutter
0.000002" X & Y Glass Scale Feedback
Auto Thread
Wire Electrode Diameter 0.1mm, 0.15mm, 0.2mm, 0.25mm, 0.3mm
Submerged Cut

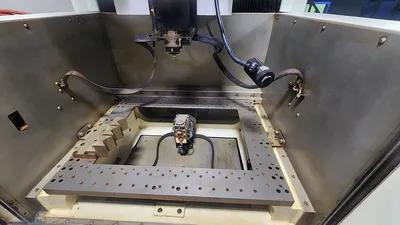

Standard 4-Sided hardened worktable
Split-V Wire Guide System
Higher capacity flush pumps (2 pumps)
Higher capacity Orion Chiller Unit
H.E.A.T. Technology for the High-Speed machining of poor flush applications
Rotary Encoders
Submersible Flushing
Automatic Temperature Control Chiller
Complete Dielectric Filtration System
Serial Number: W150752
All Available Supplies and Wire on Shelfs Pictured
