| Swing | 14" | 355.6 mm |
| Centers | 40" | 1,016 mm |
| Spindle Bore | 1.53" | 38.862 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 1,800 RPM | 1,800 RPM |
| Swing Over Cross Slide | 8.25" | 209.55 mm |
| Dimensions | 83" x 33" x 45" | 83" x 33" x 45" |
| Weight | 2650 | 2650 |

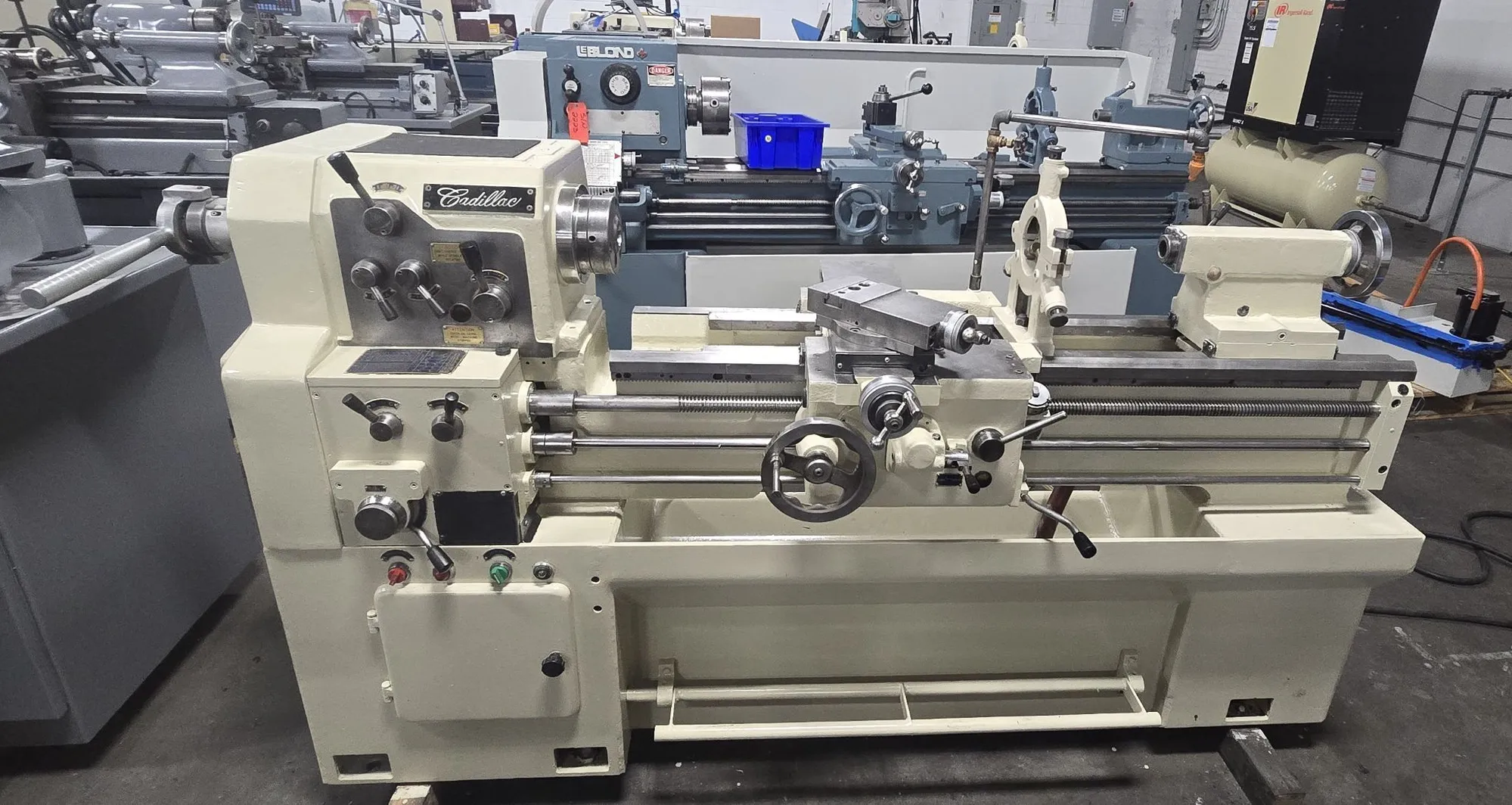

14″ x 40″ Cadillac Engine Lathe Manufacturer:
Cadillac Model Number: CM1440
Serial Number: 059777
Size: 14″ x 40″
5C Collet Closer
Foot brake
Coolant pump
Chip pan
Swing over bed 14"
Swing over cross slide 8-1/4"
Distance between centers 39-1/2"
Spindle bore 1-17/32"
Taper of spindle bore MT No. 5
Taper of center in sleeve MT No. 4
Spindle speeds 83, 155, 275, 550, 1020, 1800 RPM
Longitudinal feeds (32) .0014 to .0202
Cross feeds (32) .0012 to .0175
Threads, inch (32) 4 to 58
TPI Cross slide travel 9-1/4"
Compound rest travel 4-1/2"
Tailstock quill travel 5-3/4"
Tailstock taper MT No. 4
Main motor 3 HP / 1800 RPM
Volts 220 / 440 Phase 3
Approximate dimensions 83" x 33" x 45" high
Approximate weight 2,650 lbs.
LOC 4E
