144 Ton x 10', Crowning, 6 Axis with I Axis, Excellent Very Well Maintained
| size | 144 ton | 144 ton |
| Tonnage | 144 T | 130.635 t |
| Type | HYD | HYD |
| Overall Length | 10' | 3 m |
| Between Housings | 106" | 2.7 m |
| Stroke | 8.5" | 215.9 mm |

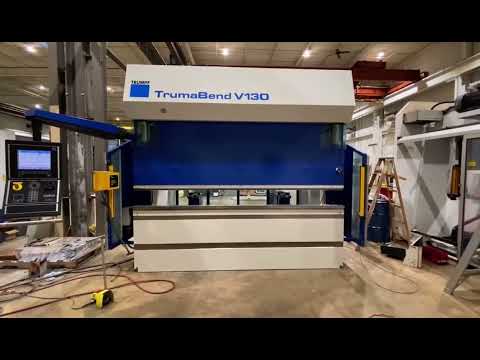

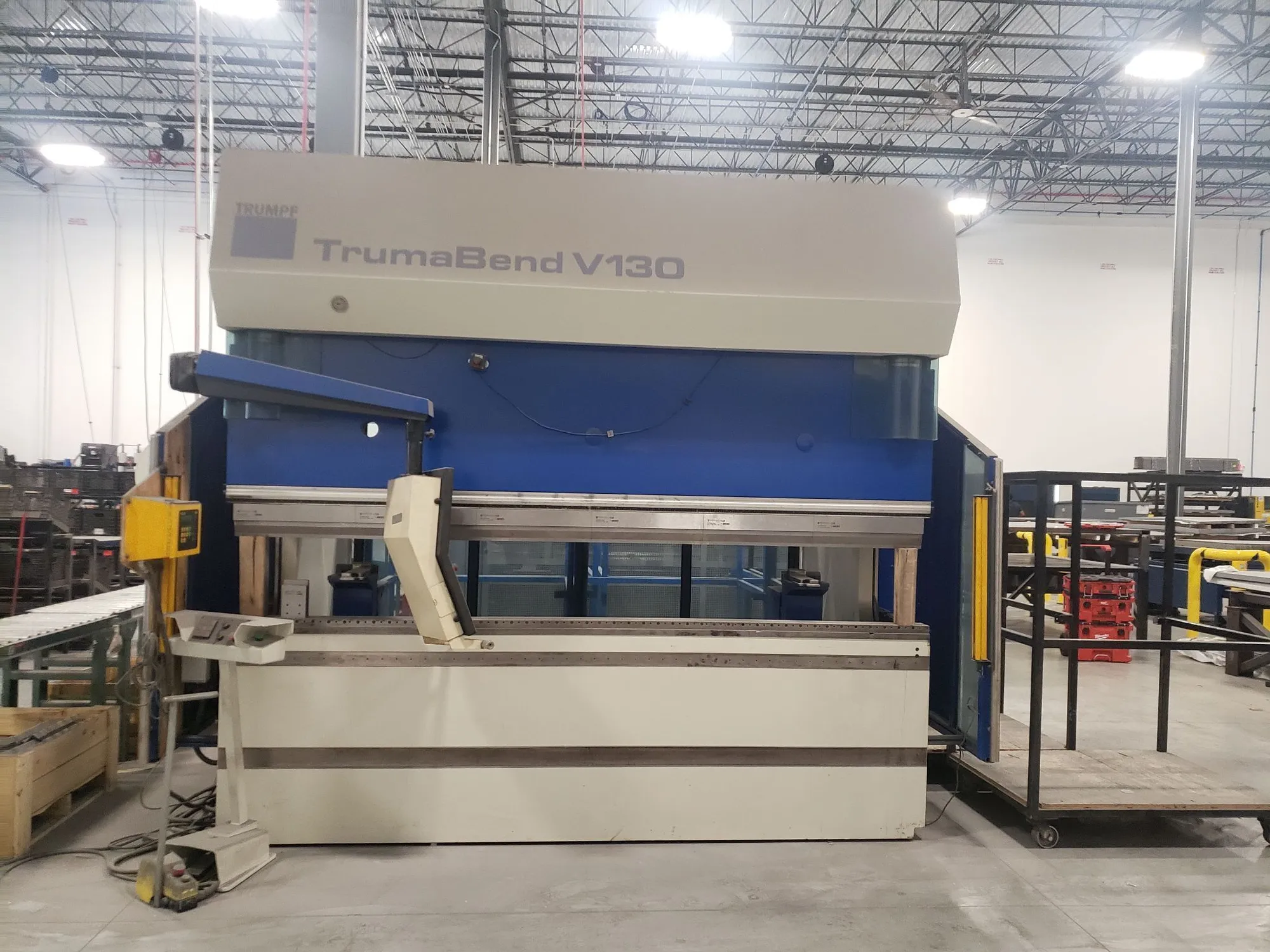

Trumpf Trumabend V130 CNC Hydraulic Press Brake
Capacity: 144 Tons
Overall Length of Bed & Ram: 120″
Distance Between Housings: 106″
Stroke: 8.5″
Open Height: 19″
Closed Height: 10.5″
Throat Clearance: 16″
Maximum Inclination of Ram: 0.4″
Approach Speed: 472″ Per Min
Form Speed: 2-24″ Per Min
Return Speed: 320″ Per Min
Distance Floor to Top of Bed: 34″
Width at Top of Bed: 4.75″
Operating Height: 4.75″
Hydraulic Reservoir Capacity: 66 Gallons
Main Motor Horsepower: 25
Back Gauge:
X-axis: 23.6"
R-Axis: 9.8"
Voltage: 230/460/3/60
Approx. Shipping Weight: 23,500 Lbs.
Approx. Shipping Dimensions: 144″ L x 87″ W x 94″ H
144 Ton x 10', Crowning, 6 Axis with I Axis, Excellent Very Well Maintained
