PROFAB Manual Foot Rocker Spot Welder
| Power | 25 kV·A | 25 kV·A |
| Throat | 29" | 736.6 mm |
| Dimensions | 40″L x 12″W x 50″H | 40″L x 12″W x 50″H |
| Weight | 300 | 300 |

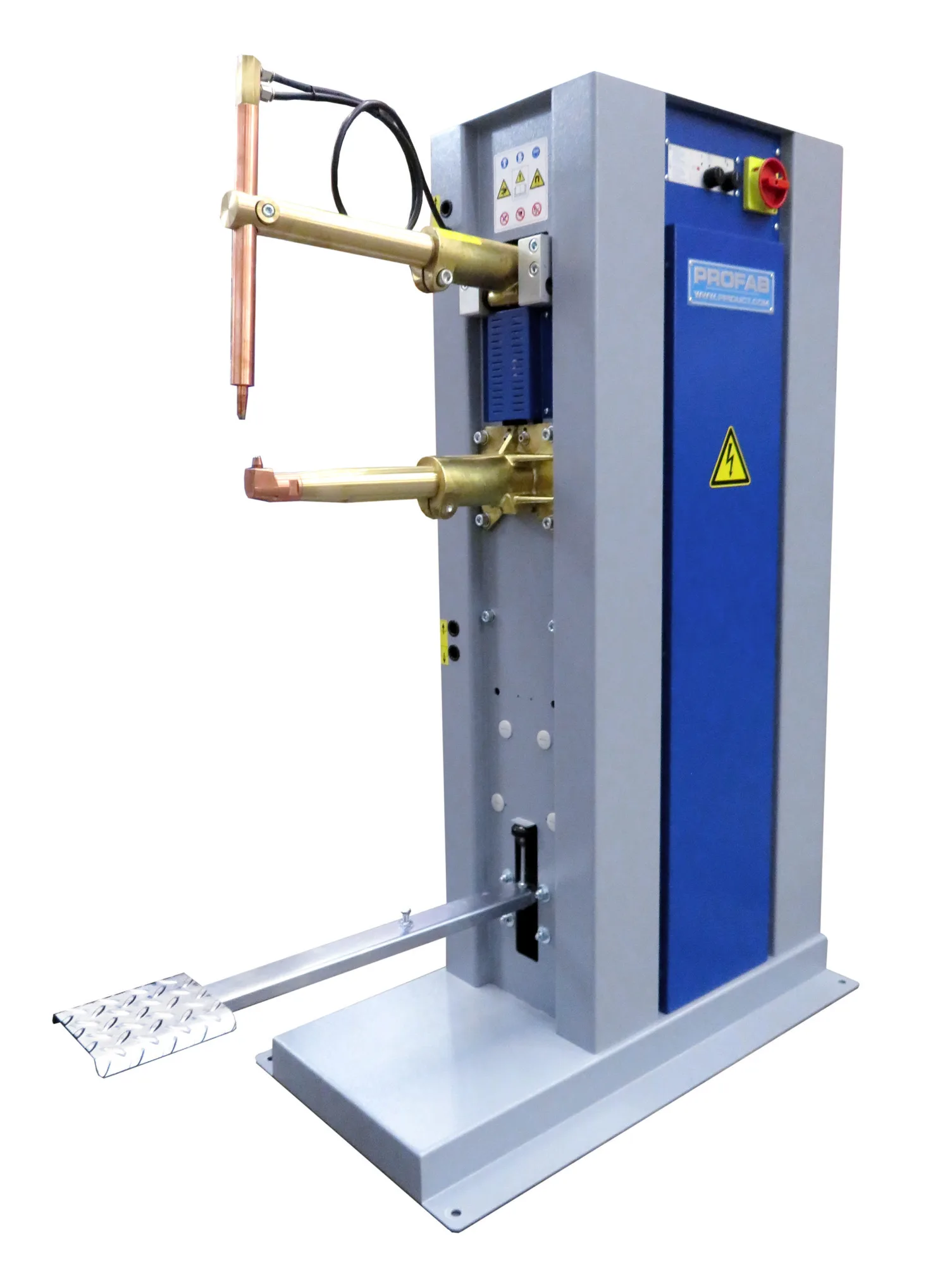

PROFAB 25 KVA Manual Foot Rocker Spot Welder
Brand PROFAB
Type: Spot Welder
Model: BSM226RF
Control: (S1) Simple dial controls for ease of use.
Foot treadle-operated rocker arm resistance spotwelder (manual)
Arms adjust 15″ to 29″
Uses standard Morse #1 tapered tips
Water-cooled transformer, arms and tip holders
220 1PH electrics
Dimensions: 40″L x 12″W x 50″H
Weight: 300 lbs. (425 lbs. crated)
25 KVA Capacity: 2 pcs 14 gauge
Custom lower arm design allows welding tubes as small as 2″ diameter and no hoses to interfere with parts
** Optional ProCool II coolant recirculator available: (+$1,045)
Plastic water tank eliminates coolant contamination due to electrolysis or chemical reactions
All units are plumbed with copper tubing and reinforced hose.
New extended life pump features a direct drive power system reducing maintenance and vibration
No external plumbing is required because of closed loop water system
Self priming pump
Easy change pump
Strong rigid construction designed to support power unit
Compact design
Factory set at 50 psi adjustable to 80 psi
3 gallon reservoir
Net weight: 37 lbs / 17 kg
