Dual Spindle, Independent Gang Slides Slash Cycle Time
The Tsugami BW329Z Swiss Type Lathe uses its 3-path control system and dual independent gang slides to slash cycle time and produce complex parts quickly. The BW329Z has the capability to use 3 tools in the cut, two on the main and one on the sub, combined with its horizontally opposed gang tool layout, this machine offers the shortest tool to tool path and the quickest possible chip to chip time.

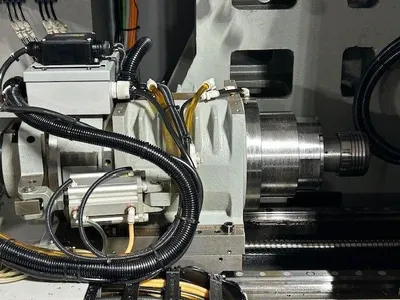

The BW329Z has Y-axis and 8 live tool positions on the sub spindle tool post allowing milling operations, traditionally performed on the main spindle, to be carried out on the sub spindle internal to the cycle time. Other features include 60mm of Z stroke on the rear gang slide, integral spindle motors and an integral drive guide bushing motor for the fastest possible acceleration/deceleration times and quick C-axis positioning.
The BW329Z’s standard nine cutting axes (X1, Y1, Z1, X2, Y2, Z2, X3, Y3, and Z3) can make easy work of your toughest applications.
Two Gang Type Tool Posts on Independent Slides enables independent back side machining, simultaneous end-milling and balanced turning with front/rear posts
Simultaneous 3-Path System control enables overlapping simultaneous machining, including superposition control
Dramatic Cycle Time Reduction – Independent slides enable pre-positioning of the next tool
Intelligent High Speed Spindles detect tool breakage by motor load, eliminates need for conventional mechanical detector
29 Tool Positions
330 mm Stroke (Direct Rotary Guide Bushing)
Max Rapid Traverse Rate of 35 m/min – shortened idle and cycle times
Fanuc 31i-B CNC
Convertible – run without guide bushing with installation of chucker kit
| Spindle Hole Dia | 38 mm | 1.4961" |
| Power | 5.5 kW | 7.4 hp |
| RPM | 8,000 RPM | 8,000 RPM |
| # Axis | 9 | 9 |
| Control | CNC (Fanuc 31iB) | CNC (Fanuc 31iB) |
| Dimensions | 104.5” x 64.5” x 79” | 104.5” x 64.5” x 79” |
| Weight | 11460 lbs | 11460 lbs |
Maximum Bar Stock 32 mm / 1.26″
# Axes 9
Sliding Headstock / Guide Bushing YES
CONVERTIBLE: Run w/o Guide Bushing (chucker) YES
Max Headstock Stroke w/ Guide Bushing
Max Headstock Stroke w/o Guide Bushing 330 mm / 12.99″
70 mm / 2.76″
# Tool Positions (std / max) 30/38
# Live Tool Positions (std / max) 11/26
Control FANUC 31i-B
Main Spindle Speed 200 – 8,000 rpm
Sub Spindle Speed 200 – 8,000 rpm
Main Spindle Motor 3.7 / 5.5 kW
Weight 11,460 lbs. / 5,200 kg
Footprint: W x D x H 2,655 × 1,640 × 2,000 mm / 104.5” x 64.5” x 79”
38mm Bar Capacity
Chucker Kit
Oscillation Cutting
Fire Suppression
Part Conveyor
MP Systems High Pressure Coolant System
LNS Alpha 338 Magazine Bar Loader
