Yoder M3 "CEE Purlin" Tooled, Gear Driven Roll Forming Line
| Number of Stands | 9 | 9 |
| Roll Space | 24" | 609.6 mm |
Line Specifications
Number of Stands: 9 (on 16 Stand Base)
Roll Space: 24"
Arbor Diameter: 3"
Arbor Center to Center Distance: 17"
Upper Arbor Adjustment: 5"
Upper and Lower Power Driven Arbors
75 hp Main Motor
8" W x 3" Flange "Cee Purlin" Tooling
9" W x 3" Flange "Cee Purlin" Tooling
Line Consists of Following Equipment:
Tishken 7R-24 Straightener
Capacity: 18" x 12 Ga.
Number of Rolls: 5 (3 over 4)
Power Driven Pinch Rolls
Entry Side Guides
Lee Schafer H-70 F Strip Welder
Max. Strip Width: 36"
Hydraulic Double Cut Crop Shear
Hydraulic Clamp and Push
Auto Weld Cycle
Tishken Measuring Roll Stand
Tishken CO-20-4-150 Pre-Punch / Notch Press
Capacity: 150 Tons
Stroke: 2.5"
Air Clutch
Adjustable Mounting Base

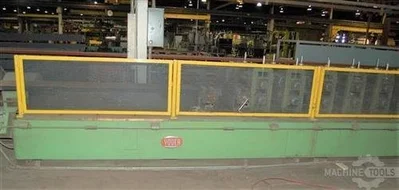

Yoder Rollformer
9 Stands, 2 Separate Bases
7 Stand Base w/ 2 Stands, 2 Side Guide Stands
8 Stand Base w/ 7 Stands, w/ Exit Straightening Fixture
Tooling Arbor Diamer: 3"
Roll Space: 26"
Vertical Adjustment: 5.5" - 10"
Horizontal Centers Distance: 18"
Base to CL of Bottom Shaft: 8.5"
Tishken CO-20-18-60 Cutoff Press
Capacity: 60 Tons
Stroke: 2.5"
Air Clutch
Mounting Base
Controls w/ Operators Desk
All Tooling and Spacers Produce C Purlins
Drawings, Tooling Drawings, Manuals
