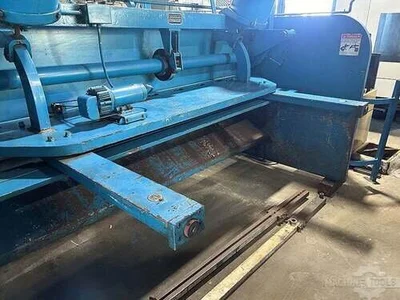

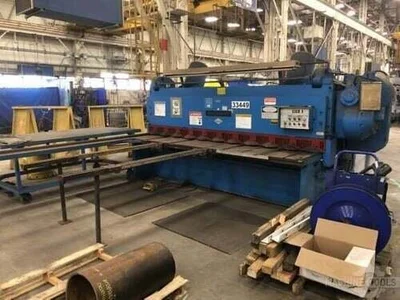

⅜” X 10 Mechanical Shear with 36” Front Operated Power Backgauge, Squaring Arm, Dovetail Slots in Shear Table, Electrical Foot Switch, Automatic Pressurized Lubrication, Interlocked All Steel Construction and Non-Float Inclined Ram
| Max Thickness | 0.1875" | 4.7625 mm |
| Length of Blade | 10' | 3 m |
| Hyd/Mech | Mech | Mech |
| Back Gauge | 36" | 914.4 mm |
| Power | 15 hp | 11.2 kW |
| SPM | 50 strokes/min. | 50 strokes/min. |
⅜” X 10 Mechanical Shear with 36” Front Operated Power Backgauge, Squaring Arm, Dovetail Slots in Shear Table, Electrical Foot Switch, Automatic Pressurized Lubrication, Interlocked All Steel Construction and Non-Float Inclined RamGENERAL SPECIFICATIONS Max. Thickness Mild Steel: ⅜”Max. Thickness Stainless: ¼”Length: 10’Approx. Shipping Weight: 26,400 LbsMotor: 10 HPStroke Speed: 50 SPMTo Blade Edge: ⅞”Rake Taper Foot: 9/32”Standard Gaps (Throat Clearance): 18”Number of Holddowns: 11INCLUDES: 36” Front Operated Power Backgauge, Squaring Arm, Dovetail Slots in Shear Table, Electrical Foot Switch, Automatic Pressurized Lubrication, Interlocked All Steel Construction and Non-Float Inclined Ram
