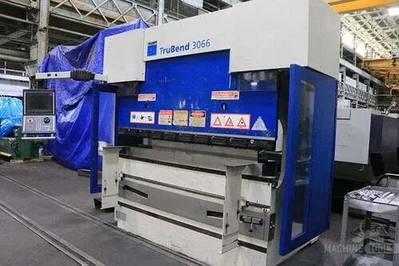

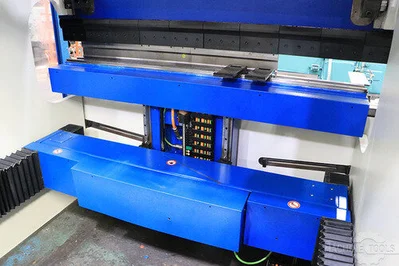

73 Tons X 80” Hydraulic Press Brake with Delem DA-65T Graphical Control, Palm Buttons Mounted on Pedestal Station w/ Foot Pedal, Trumpf CNC Multi - Axis Backgauge (X, Y, R, Z1, Z2).
73 Tons X 80” Hydraulic Press Brake with Delem DA-65T Graphical Control, Palm Buttons Mounted on Pedestal Station w/ Foot Pedal, Trumpf CNC Multi - Axis Backgauge (X, Y, R, Z1, Z2).GENERAL SPECIFICATIONS Tonnage: 73 TonsBed Length: 80” Distance Between Housings: 69”Stroke: 7.87”Open Height: 14”Closed Height: 5.9”Y - Axis Rapid Downward Movement: 200 mm/SecY - Axis Operational Speed Max: 15 mm/SecPress Speed Rapid Advance: 472 IPMBending Speed: 35 IPMReturn Speed: 472 IPMMain Motor: 10 HPMax. Operating Pressure: 4,466 PSIMotor Specs: 3 Ph / 460 VApprox. Weight: 12,500 LbsApprox. Dimensions: 102” X 69” X 92”INCLUDES: Delem DA-65T Graphical Control, Palm Buttons Mounted on Pedestal Station w/ Foot Pedal, Trumpf CNC Multi - Axis Backgauge (X, Y, R, Z1, Z2).
