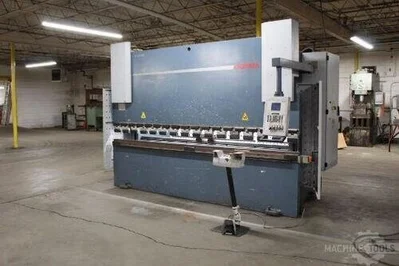

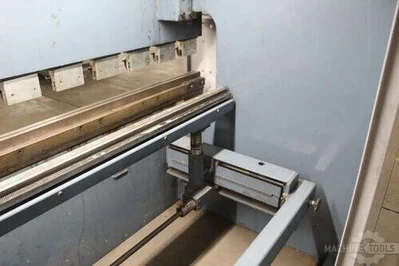

176 Tons X 12’ Hydraulic Press Brake with 3 - Axis Synchro CNC Backgauge (Y1, Y2, X), Numerical Control Cybelec DU6000, Lower Die Rail, European Clamping System, Dual Palm Button or Electric Foot Switch Operation, Backgauge Fingers with Adjustable Height and Manual Crowning.
| Tonnage | 160 T | 145.15 t |
| Type | HYD | HYD |
| Overall Length | 12' | 3.7 m |
| Stroke | 7.87" | 199.9 mm |
176 Tons X 12’ Hydraulic Press Brake with 3 - Axis Synchro CNC Backgauge (Y1, Y2, X), Numerical Control Cybelec DU6000, Lower Die Rail, European Clamping System, Dual Palm Button or Electric Foot Switch Operation, Backgauge Fingers with Adjustable Height and Manual Crowning.GENERAL SPECIFICATIONS Capacity: 176 TonsOverall Length of Bed and Ram: 146”Distance Between Housings: 122”Stroke (Adjustable): 7.9”Open Height: 16.9”Throat Depth: 13.8”Approach Speed: 3.93” / SecBending Speed: 0.35” / SecReturn Speed: 3.38” / SecTable Width: 4”Table Height: 33.7”Backgauge Travel: 24”Voltage: 230 / 460 / 3 PHWeight: 24,030 LbsDimensions: 193” X 59” X 106” HINCLUDES: 3 - Axis Synchro CNC Backgauge (Y1, Y2, X), Numerical Control Cybelec DU6000, Lower Die Rail, European Clamping System, Dual Palm Button or Electric Foot Switch Operation, Backgauge Fingers with Adjustable Height and Manual Crowning.
