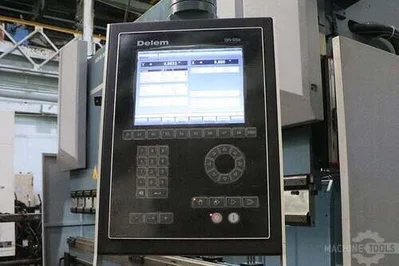

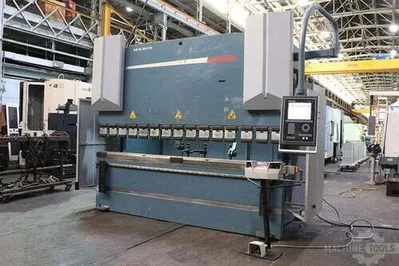

192.5 Ton X 10’ CNC Hydraulic Press Brake with Delem DA-56s 3 - Axis CNC Backgauge (X, Y1, Y2), Manual R - Axis, Manual Crowning, 4 Adjustable Fingers on Backgauge, Lower Die Rail and Dual Palm Button or Foot Switch Operation.
192.5 Ton X 10’ CNC Hydraulic Press Brake with Delem DA-56s 3 - Axis CNC Backgauge (X, Y1, Y2), Manual R - Axis, Manual Crowning, 4 Adjustable Fingers on Backgauge, Lower Die Rail and Dual Palm Button or Foot Switch Operation.GENERAL SPECIFICATIONS Capacity: 192.5 TonsOverall Length of Bed & Ram: 10’Distance Between Housings: 8’ 6”Stroke (Adjustable): 10.4”Open Height: 21”Throat Depth: 16”Approach Speed: 283 IPMPress Speed: 24 IPMReturn Speed: 236 IPMMotor: 25 HP Voltage: 230/460V / 3 Ph (460 Currently)Dimensions: 14’ X 8’ 4” X 9’ HWeight: 25,353 Lbs

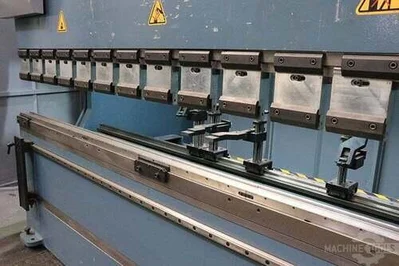

INCLUDES: Delem DA-56s 3 - Axis CNC Backgauge (X, Y1, Y2), Manual R - Axis, Manual Crowning, 4 Adjustable Fingers on Backgauge, Lower Die Rail and Dual Palm Button or Foot Switch Operation.
