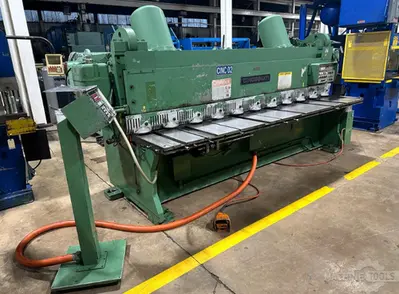

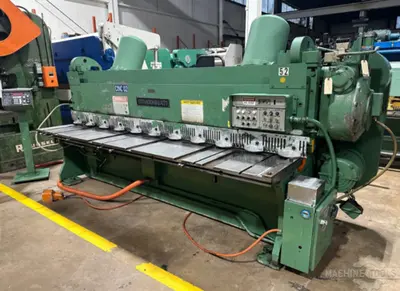

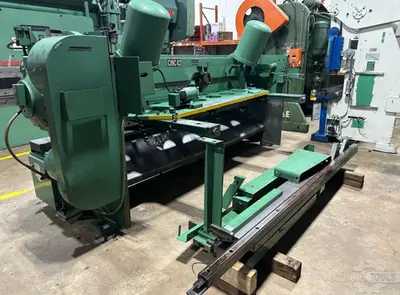

¼” X 10’ Mechanical Shear with 36” Front Operated Power Backgauge with Multi-Axis Gaging System, (1) Support Arm, Electrical Foot Switch, Push Buttons for Start - Stop - Jog, Automatic Oil Lubrication, Spring Counter Balance and (5) Dovetail in Front of Bed.
¼” X 10’ Mechanical Shear with 36” Front Operated Power Backgauge with Multi-Axis Gaging System, (1) Support Arm, Electrical Foot Switch, Push Buttons for Start - Stop - Jog, Automatic Oil Lubrication, Spring Counter Balance and (5) Dovetail in Front of Bed.GENERAL SPECIFICATIONS Max. Thickness: ¼”Length: 10’ Backgauge: 36”Length of Knives: 10’ 3”Gap: 4”Rake Angle: ¼”Holddown to Knife Edge: ⅝”SPM Approx: Approx Overall Dimensions: 160” X 80” X 79” HApprox Weight: 19,500 Lbs
INCLUDES: 36” Front Operated Power Backgauge with Multi-Axis Gaging System, (1) Support Arm, Electrical Foot Switch, Push Buttons for Start - Stop - Jog, Automatic Oil Lubrication, Spring Counter Balance and (5) Dovetail in Front of Bed.
