Heidenhain TNC 530 CNC Control
Number of Processing Axes (Excluding Parallel Axes) – 6
6 Simultaneous CNC Axes
Chip Conveyor
Coolant Unit
Through Spindle Coolant Attachment
40 Position Tool Magazine
Tilting Head Spindle Type

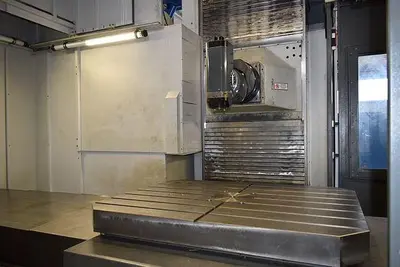

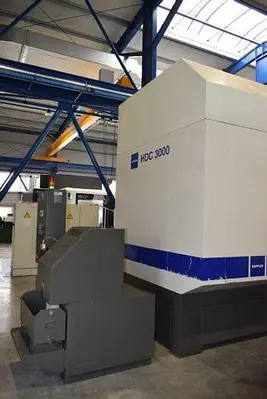

Manufacturer: Keppler
Model: HDC 3000
Year: 2010
Condition: Used
Stock Number: 10577
X axis travel: 3,000 mm
Y axis travel: 1,900 mm
Z axis travel: 1,200 mm
Interference diameter around rotary table: 2,300 mm
Rotary table size: 1,400 x 1,200 mm
Spindle type: Tilting Head
Max spindle speed: 14,000 rpm
Tool fixture: HSK A100
Spindle torque: 130 Nm
