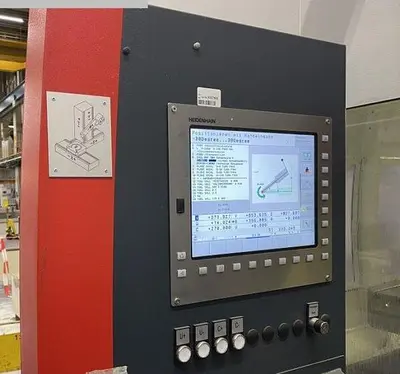

Heidenhain iTNC 530 CNC Control
Coolant System – 30 bar with 115 L/minute to 90 bar with 30 L/minute
Tool Changer – 32 Position x (4×8)
Max Tool Diameter (all spaces occupied) 148 mm
Max Tool Length 400 mm
Max Tool Weight 15 kg
3 Pieces Stead Rests
Coolant – 585 Liter
High Pressure Pump – 30 – 90 bar
Chip Conveyor
Tool Monitoring of the Main Spindle by Torque

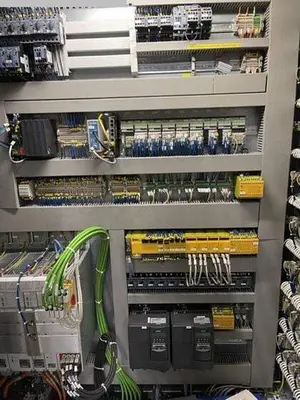

Digital Drive Control
Drill Milling Cycles and Thread Cutting without Balancing Chuck
700 Pieces of Single-Lip Drills can be Purchased Separately – Almost All Unused
Manufacturer: Botec und Iscar
Diameter of Bores: 5/8/10/12/13/13.1/14/15/16.2/16.5/17/18/18.1/16/22/24/27/30/33
Length of Bores: 600/1000/1,500/1,900

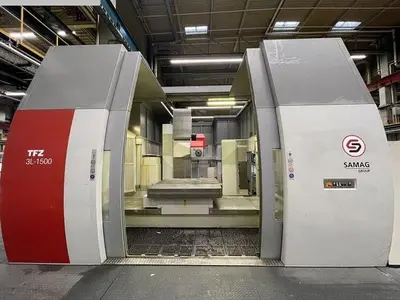

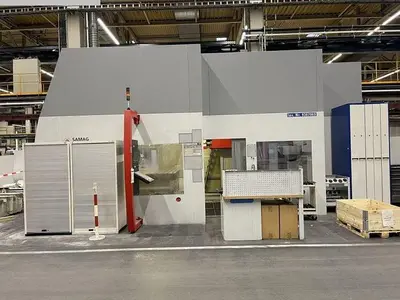

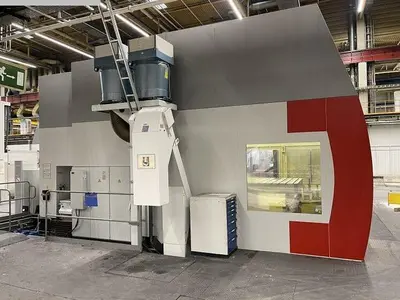

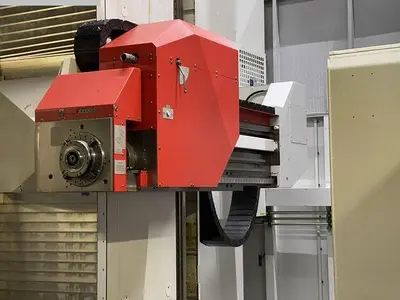

Manufacturer: SAMAG
Model: TFZ 3L-1500
Year: 2015
Condition: Used
Stock Number: 11028
Drilling depth: 1,500 / 1,800 mm
Drilling diameter: 4 - 40 mm
X axis travel: 2,500 mm
Y axis travel: 1,650 mm
Z axis travel: 1,550 mm
W axis travel: 2,250 mm
A axis: -30/+30 Grad
B axis: 360°

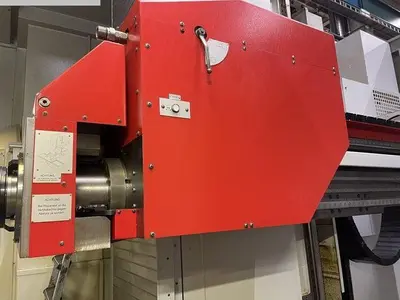

Live spindle speed: 6,000 rpm

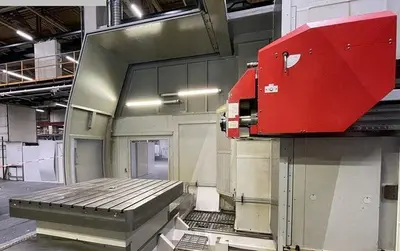

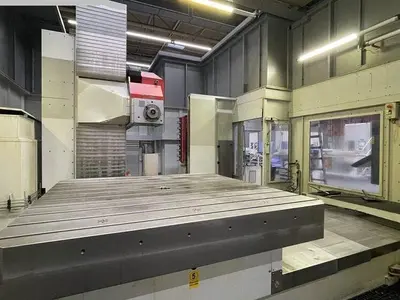

Table surface area: 1,800 x 1,800 mm
Table load: 26 Ton
Tool taper: HSK 100
Rapid traverse: 20 m/min
Max torque on the working spindle: 952/648 Nm
Threading: M30
Drive power - drilling & milling device: 17 / 25 kW
Power connection: 102 kVA
Weight of the machine, approximate: 55 Ton
Machine dimensions, approximate: 9.85 x 9 x 5 m
