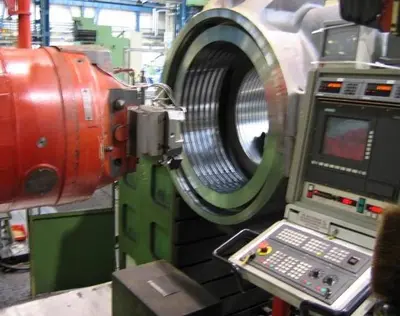

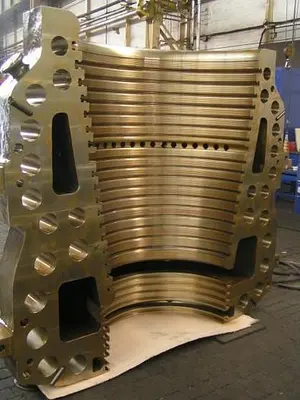

Special purpose machine to hollow out turbine housingsCan also be used to finish the outer diameter of a workpieceGrooving
Planing
Manufacturer: Heyligenstaedt
Model: DW 1800
Year: 1972
Condition: Used
Stock Number: 10066
Retrofit: 1996
Chuck diameter: 1,760 mm
hollow-out diameter: 2,800 mm
hollow-out length: 3,950 mm
Center height: 1,600 mm
Drive power: 63 kW
Z-axis feed speed: 0 - 400 mm/min
Spindle revolutions (minimum): 0.45/min
Spindle revolutions (maximum): 90/min
Number of gears: 4
X-axis traverse: 0 - 200 mm/min
Rapid traverse - x-axis: 1,200 mm/min
Rapid traverse - z-axis: 2,400 mm/min
Total power: 200 kW
Mains voltage: 380 V
Machine dimensions: 16.4 x 12.39 x 5.17 m
Approximate machine weight: 55,500 kg
