| Table-W | 30" | 762 mm |
| Table-L | 30" | 762 mm |
| Horz/Vert | Horz | Horz |
| Power | 20 hp | 14.9 kW |
| Grinding Wheel Width | 2" | 50.8 mm |
| Grinding Wheel Dia. | 16" | 406.4 mm |
| Dimensions | 106” x 48” x 87” | 106” x 48” x 87” |
| Weight | 12,600 lbs | 12,600 lbs |

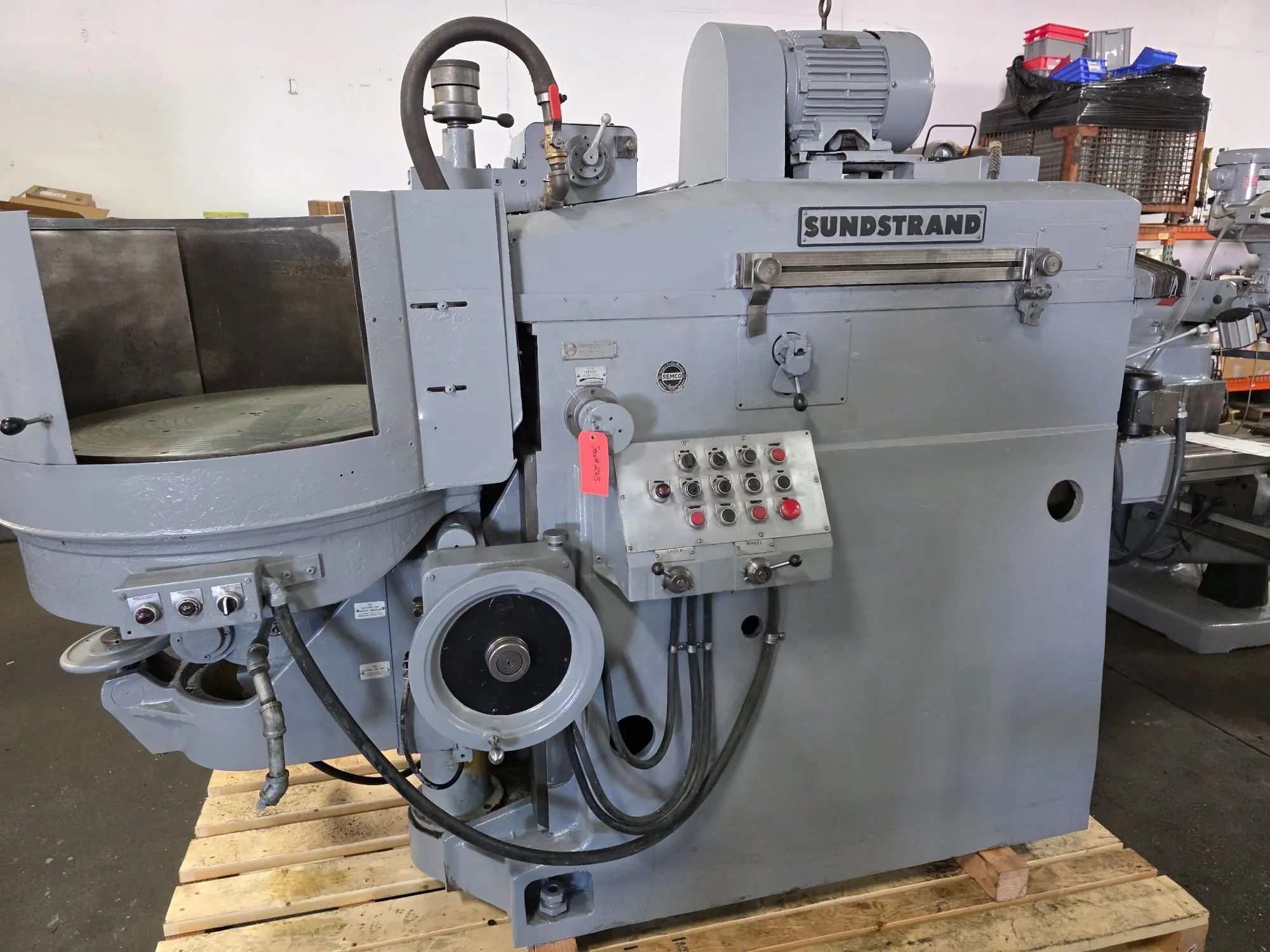

Sundstrand-Arter H30 Rotary Surface Grinder
s/n 44-26
Capacity:
Magnetic Chuck-Nominal Diameter: 30”
Magnetic Chuck-Actual Face Dia: 31”
Magnetic Chuck-Pilot Hole: 1”
Swing-Max, In Water Pan: 34”
Work Height-Max, With New Wheel: 10”
Wheel Collet Flange Dia.: 10 ½”
Standard Wheel Size: 16” x 2” x 8”
Wheelhead Stroke-Max: 17”
Knee-Max, Vertical Travel: 12”
Angular Tilt- Convex: 10 Degrees
Angular Tilt- Concave: 10 Degrees
Speeds & Feeds:
Wheelhead Spindle RPM: 1400
Wheelhead Traverse (Inf. Adjustable): 0-10 FPM
Table Speed- Adjustable: 30-125 RPM
Feed Handwheel-One Revolution: .020”
Feed Handwheel-Finest Division: .0001”
Power Feed- Adjustable: .0001”-.0015”
Table Slide Power Positioning: 6 IPM
Electrical Data:
Standard Controls-All EGP-1967-1: 460V-60HZ-3 Phase
Wheelhead Spindle Motor (STD.): 20HP/1800 RPM
Hydraulic Pump Motor (J.I.C.): 10HP/1800 RPM
General Data:
Coolant Reservoir-Gallons: 45
Hydraulic Reservoir-Gallons (J.I.C.): 80
Dimensions: 106” x 48” x 87”
Machine Weight- Net: 12,600 lbs
Hydraulic pump: 77" x 44" x 73" 1500 lbs
Coolant Tank: 48" x 25" x 12" 500 lbs
