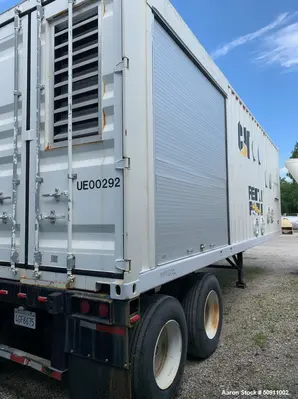

Used Caterpillar / York Model PY-525A Containerized Packaged Mobile Chiller. Consisting of York Millennium Rotary Screw Liquid Chiller, Model YSECEAS4-CRDS. Rated 533 tons. Refrigerant R-22, charge 1300 lbs. 408 HP, 3/60/460 volt, 3600 rpm motor. Evaporator (182) tubes rated 150 psi at 110 degrees F, 2 pass, 1200 gallons per minute. Condenser (221) tubes rated 150 psi at 110 degrees F, 2 pass, 1500 gallons per minute. Entering chilled water 55 degrees F, leaving chilled water 45 degrees F. Entering condenser water 85 degrees F, leaving condenser water 94.9 degrees F. Includes (2) Ball & Gossett 50hp pumps, solid state motor starter. Has (2) side roll up doors, (1) service door. Mounted inside a 30' container on chassis. Serial # SNGM-318690.
USED EQUIPMENT FACTS ABOUT THIS MACHINE
Manufacturer Information:
Manufacturer: Caterpillar / York
Model: PY-525A
Chiller Model: York Millennium Rotary Screw Liquid Chiller (Model YSECEAS4-CRDS)
Condition: Used
Containerized: Yes, 30' container on chassis
Description:
The Used Caterpillar / York Model PY-525A Containerized Packaged Mobile Chiller is a high-capacity, industrial cooling system designed for portable and stationary applications. It features a York Millennium Rotary Screw Liquid Chiller rated at 533 tons, utilizing R-22 refrigerant with a charge capacity of 1300 lbs. This self-contained chiller system is mounted inside a 30' container on a chassis, making it ideal for temporary or emergency cooling solutions.
Powered by a 408 HP motor (3-phase, 60 Hz, 460V, 3600 RPM), this industrial chiller provides high-efficiency cooling with optimized heat exchange performance. The evaporator and condenser are two-pass systems with high flow rates, ensuring maximum cooling performance:
Evaporator: 182 tubes, rated at 150 psi @ 110°F, flow rate: 1200 GPM
Condenser: 221 tubes, rated at 150 psi @ 110°F, flow rate: 1500 GPM
Water Temperatures:
Entering chilled water: 55°F → Leaving chilled water: 45°F
Entering condenser water: 85°F → Leaving condenser water: 94.9°F
The unit includes (2) Ball & Gossett 50 HP pumps, a solid-state motor starter, and is equipped with (2) side roll-up doors and (1) service door for ease of access.
Specifications:
Cooling Capacity: 533 Tons
Refrigerant Type: R-22, Charge: 1300 lbs
Motor Power: 408 HP
Voltage: 460V, 3-phase, 60 Hz
RPM: 3600
Evaporator:
182 tubes, 150 psi @ 110°F
2-pass, flow rate: 1200 GPM
Condenser:
221 tubes, 150 psi @ 110°F
2-pass, flow rate: 1500 GPM
Temperature Ranges:
Chilled Water: 55°F entering → 45°F leaving
Condenser Water: 85°F entering → 94.9°F leaving
Pumps: (2) Ball & Gossett 50 HP pumps
Enclosure: 30' container on chassis with (2) roll-up doors, (1) service door
Serial Number: SNGM-318690
Applications:
Industrial cooling solutions
Temporary cooling for large-scale operations
Backup or emergency chiller system
Data center cooling
Manufacturing process cooling
HVAC supplemental cooling
Power plant cooling systems
Compatible Uses (Industries & Facilities):
Commercial and industrial HVAC systems
Food & beverage processing plants
Oil refineries and chemical plants
Data centers and server rooms
Power plants and substations
Medical and pharmaceutical facilities
Temporary or seasonal cooling applications
