Used York / Caterpillar Containerized Packaged Mobile Chiller, Model PY-525A. Consisting of York Millennium Rotary Screw Liquid Chiller, Model YSECEAS4-CRDS. Rated 533 tons. Refrigerant R-22, charge 1300 lbs. 408 HP, 3/60/460 volt, 3600 rpm motor. Evaporator (182) tubes rated 150 psi at 110 degrees F, 2 pass, 1200 gallons per minute. Condenser (221) tubes rated 150 psi at 110 degrees F, 2 pass, 1500 gallons per minute. Entering chilled water 55 degrees F, leaving chilled water 45 degrees F. Entering condenser water 85 degrees F, leaving condenser water 94.9 degrees F. Includes (2) Ball & Gossett 50hp pumps, solid state motor starter. Has (2) side roll up doors, (1) service door. Mounted inside a 30' container on chassis. Serial # SNGM-318990.
USED EQUIPMENT FACTS ABOUT THIS MACHINE
Manufacturer Information:
Manufacturer: York / Caterpillar
Model: PY-525A
Chiller Model: York Millennium Rotary Screw Liquid Chiller (Model YSECEAS4-CRDS)
Condition: Used
Containerized: Yes, 30' container on chassis
Description:
The Used York / Caterpillar PY-525A Containerized Packaged Mobile Chiller is a high-capacity, industrial-grade cooling system designed for temporary, emergency, and large-scale cooling applications. This system features a York Millennium Rotary Screw Liquid Chiller with a 533-ton cooling capacity, utilizing R-22 refrigerant with a charge of 1300 lbs.
Powered by a 408 HP motor (3-phase, 60 Hz, 460V, 3600 RPM), this high-efficiency chiller delivers optimal performance with a dual-pass heat exchange system. The evaporator and condenser are two-pass systems ensuring efficient thermal transfer:
Evaporator: 182 tubes, rated at 150 psi @ 110°F, flow rate: 1200 GPM
Condenser: 221 tubes, rated at 150 psi @ 110°F, flow rate: 1500 GPM
Water Temperatures:
Entering chilled water: 55°F → Leaving chilled water: 45°F
Entering condenser water: 85°F → Leaving condenser water: 94.9°F
Additionally, the unit is equipped with (2) Ball & Gossett 50 HP pumps, a solid-state motor starter, and is mounted inside a 30' container on a chassis with (2) side roll-up doors and (1) service door for easy access.
Specifications:
Cooling Capacity: 533 Tons
Refrigerant Type: R-22, Charge: 1300 lbs
Motor Power: 408 HP
Voltage: 460V, 3-phase, 60 Hz
RPM: 3600
Evaporator:
182 tubes, 150 psi @ 110°F
2-pass, flow rate: 1200 GPM
Condenser:
221 tubes, 150 psi @ 110°F
2-pass, flow rate: 1500 GPM
Temperature Ranges:
Chilled Water: 55°F entering → 45°F leaving
Condenser Water: 85°F entering → 94.9°F leaving
Pumps: (2) Ball & Gossett 50 HP pumps
Enclosure: 30' container on chassis with (2) roll-up doors, (1) service door

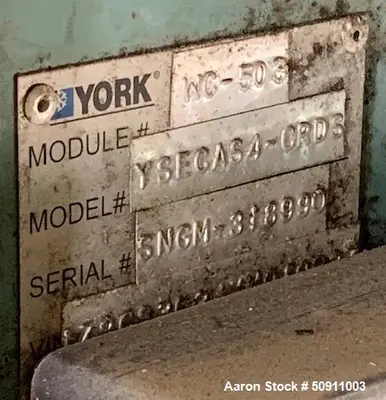

Serial Number: SNGM-318990
Applications:
Industrial process cooling
Temporary or emergency cooling solutions
HVAC support for commercial buildings
Manufacturing and chemical plant cooling
Data center and IT infrastructure cooling
Food & beverage processing plant cooling
Power plant and substation cooling
Compatible Uses (Industries & Facilities):
Industrial and commercial HVAC systems
Temporary chiller rental alternative
Oil refineries and chemical plants
Pharmaceutical and medical cooling applications
Cooling for server rooms and data centers
Mining and heavy industrial cooling solutions
