Used Minster #6 60 Ton OBI Punch Press from 1983, Serial #25366. Features: Air Clutch & Brake, Shadow VI Light Curtains, Wintress Smartpac, Auto Lube System, and more. Dimensions: 72"x60"x128", Weight: 14,500 lbs, 20-150 SPM. Perfect for industrial applications.
| Tonnage | 60 T | 54.431 t |
| Stroke | 3" | 76.2 mm |
| Shut Height | 13.1" | 332.74 mm |
| Bed W | 21" | 533.4 mm |
| Bed L | 32" | 812.8 mm |
| SPM | 150 strokes/min. | 150 strokes/min. |
| Air Clutch (Yes/No) | Yes | Yes |
| Type (BG, Double Action, FW) | Flywheel | Flywheel |
| Crank (Single/Double) | Single | Single |
| Dimensions | 72 x 60 x 128 | 72 x 60 x 128 |
| Weight | 14500 | 14500 |

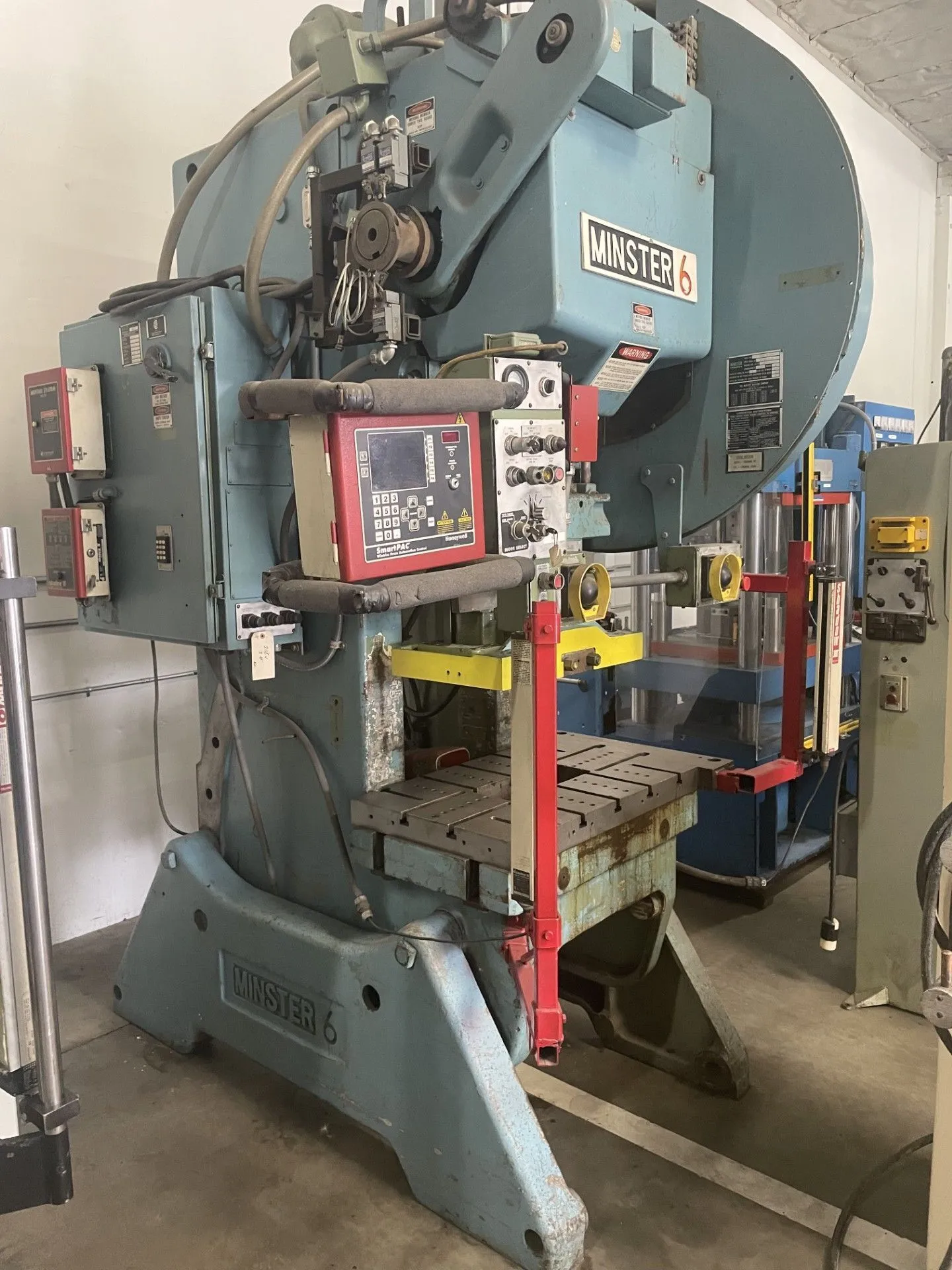

Minster #6 OBI Punch Press 60 Ton x 32" x 21" #5921 #2
Serial #: 25366
Manufactured 1983
Tonnage: 60
Ram Stoke: 3"
Ram Adjustment: 2.75"
Shut Height: 13.1"

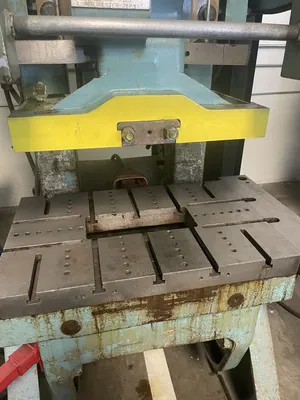

Bed Size (L-R, F-B): 32" x 21"
Ram Size (L-R, F-B): 24" x 14"
Throat Depth: 11"
Opening Through Back Housings: 15"
Strokes Per Minute (Variable): 20- 150
Dimensions (L x W x H): 72" x 60" x 128"
Weight: 14,500 Lbs.
Equipped with
Air Clutch & Brake

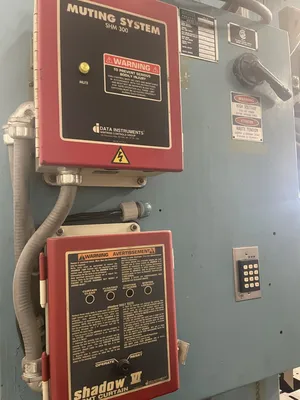

Shadow VI Light Curtains
Wintress Smartpac Automation Control
Air Counter Balance
Blow Off
Auto Lube System
Dual Palm Controls
Electric Foot Pedal
Horsepower: 10
