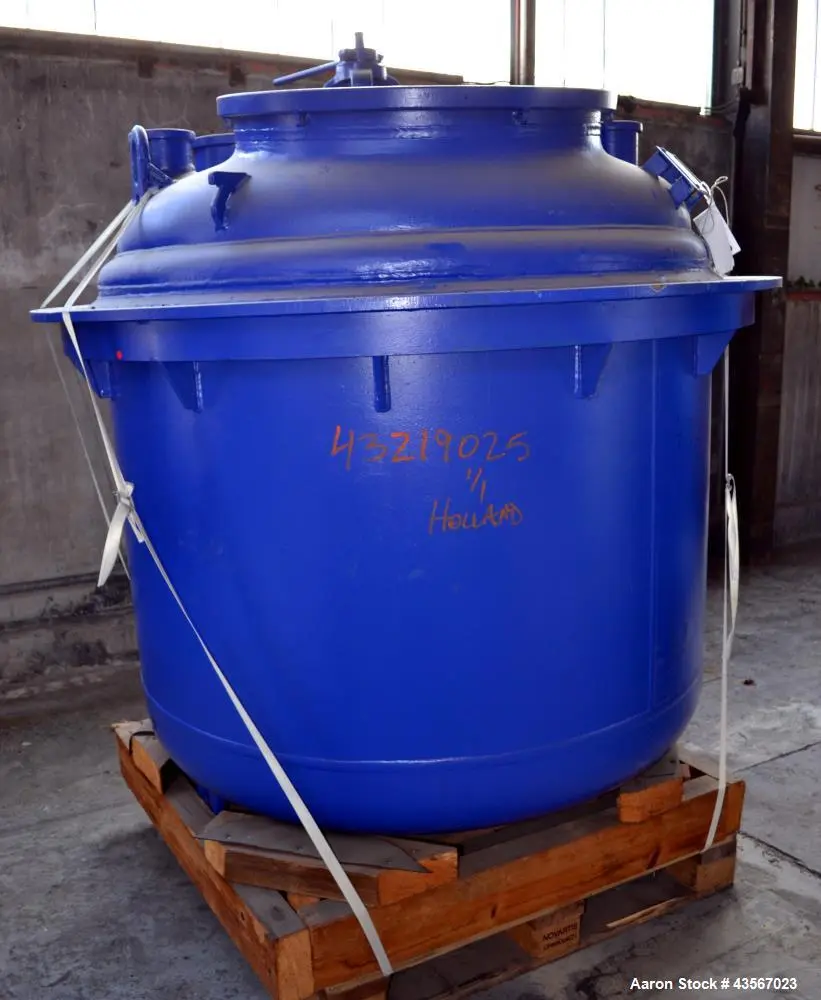

Used De Dietrich Glass Lined Reactor, 2030 Liter (536.43 Gallon), 3009 Blue Glass, Vertical. Approximately 54" diameter x 44" straight side. Dished top and bottom. Internal rated -1/6 bar (-14.5/87 psi) at 30 to 200 degrees C (-22 to 392 F). Carbon steel jacket rated -1/6 bar (-14.5/87 psi) at 30 to 200 degrees C (-22 to 392 F). (1) Fin baffle. Openings top (1) approximate 30, (3) 4, (2) 8. 4 Bottom outlet. Side mounting ring. Serial # 57364.
USED EQUIPMENT FACTS ABOUT THIS MACHINE
Manufacturer Information:
Brand: De Dietrich
Type: Glass-Lined Reactor
Model: 3009 Blue Glass
Capacity: 2030 Liters (536.43 Gallons)
Description:
This used De Dietrich 2030L (536.43 Gallon) Glass-Lined Reactor is a high-performance vessel, ideal for chemical, pharmaceutical, and industrial processing applications requiring corrosion-resistant glass lining.
Constructed with 3009 blue glass lining, this reactor ensures excellent resistance to acidic and corrosive environments, making it suitable for highly reactive chemical processing. The vertical orientation with dished top and bottom provides uniform mixing and efficient processing.
The reactor is internally rated for -1 to 6 bar (-14.5 to 87 psi) at 30 to 200°C (-22 to 392°F), ensuring safe operation in demanding conditions. The carbon steel jacket is rated -1/6 bar (-14.5 to 87 psi) at 30 to 200°C (-22 to 392°F), allowing precise thermal regulation for controlled reactions.
Key features include:
Fin Baffle for enhanced mixing and heat transfer
Multiple Top Openings:
(1) Approximate 30”
(3) 4”
(2) 8”
4” Bottom Outlet for controlled product discharge
Side Mounting Ring for stability and secure installation
Serial # 57364
Specifications:
Capacity: 2030 Liters (536.43 Gallons)
Construction: 3009 Blue Glass-Lined, Carbon Steel Jacket
Orientation: Vertical
Vessel Dimensions: 54” Diameter x 44” Straight Side
Ends: Dished Top & Bottom
Internal Pressure Rating: -1 to 6 bar (-14.5 to 87 psi)
Jacket Pressure Rating: -1 to 6 bar (-14.5 to 87 psi)
Temperature Range: 30 to 200°C (-22 to 392°F)
Baffle: (1) Fin Baffle
Openings:
(1) Approximate 30”
(3) 4”
(2) 8”
Bottom Outlet: 4”
Mounting: Side Mounting Ring
Serial #: 57364
Applications:
Pharmaceutical & Biotech – Synthesis of active ingredients, fine chemicals, and bioprocessing
Chemical Processing – Corrosion-resistant reactor for acids, solvents, and hazardous materials
Petrochemical & Industrial Manufacturing – Reaction vessel for high-temperature processing
Food & Beverage – Processing of food-grade chemicals, additives, and ingredients
Research & Development – Laboratory and pilot plant production of specialty compounds
What Products Would This Be Used For?
API (Active Pharmaceutical Ingredient) production
Specialty chemical synthesis
Corrosive acid and solvent reactions
Polymer and resin manufacturing
High-temperature industrial formulations
