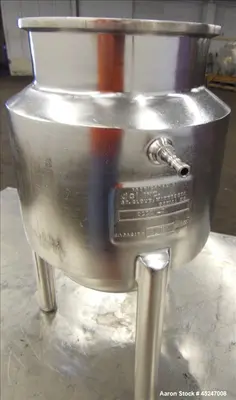

Used DCI Reactor, 3 Liter (0.79 Gallon), 316 Stainless Steel, Vertical. 6" Diameter x 8" straight side, flat tri-clamp top, dished bottom. Internal rated +40/-15 psi at -20 to 300 degrees F, jacket rated +10/-15 psi at -20 to 300 degrees F. Openings: top 3/4", 5/8", 5/16", 1" tri-clamp; 1/4" center bottom outlet. Mounted on 3 stainless steel legs. Serial #JS2221-E. Built 2002.
Used Equipment Facts About This Machine
Description:
This DCI 3-liter stainless steel reactor is designed for precision small-batch processing, ideal for pharmaceutical, chemical, and laboratory applications. Constructed from 316 stainless steel, the reactor provides excellent corrosion resistance, making it suitable for high-purity and chemical processing environments.
The reactor has a 6” diameter and 8” straight-side height, with a flat tri-clamp top and a dished bottom. Internally, it is rated for +40 PSI / -15 PSI at -20°F to 300°F, making it capable of handling pressure-sensitive and vacuum reactions. The jacket is rated for +10 PSI / -15 PSI at the same temperature range, allowing for precise temperature control during reactions.
This unit features multiple top openings for process connections and monitoring, including:
3/4" opening
5/8" opening
5/16" opening
1" tri-clamp connection
The reactor has a 1/4" center bottom outlet for product discharge. It is mounted on three stainless steel legs, ensuring stability and easy placement in lab or production environments.
Specifications:
Capacity: 3 Liters (0.79 Gallons)
Material: 316 Stainless Steel
Orientation: Vertical
Dimensions:
Diameter: 6"
Straight-Side Height: 8"
Top Configuration: Flat Tri-Clamp
Bottom Configuration: Dished
Pressure Ratings:
Internal: +40 PSI / -15 PSI at -20°F to 300°F
Jacket: +10 PSI / -15 PSI at -20°F to 300°F
Openings:
Top Openings: 3/4", 5/8", 5/16", 1" Tri-Clamp
Bottom Outlet: 1/4" Center Bottom
Mounting: Three Stainless Steel Legs
Condition: Used (Built in 2002, Serial #JS2221-E)
Applications:
This small-scale reactor is ideal for precision-controlled reactions and processing in industries such as:
Pharmaceutical & Biotech – API development, small-scale synthesis, and formulation testing
Chemical Processing – Specialty chemical reactions, catalyst testing, and R&D experiments
Food & Beverage Industry – Small-batch ingredient testing, flavor development, and formulation research
Cosmetic & Personal Care – Mixing and emulsifying active ingredients for skincare and cosmetic products
Petrochemical & Lubricants – Processing of specialty oils, waxes, and lubricants
Adhesives, Coatings & Paints – R&D of resins, coatings, and polymer formulations
Plastics & Polymer Processing – Pilot-scale polymerization reactions
Laboratory & Research Applications – Precision-controlled chemical and material science research
What Products Would This Be Used For?
This laboratory-scale stainless steel reactor is designed for processing:
Active pharmaceutical ingredients (APIs)
Specialty chemicals and catalysts
Cosmetic and skincare formulations
Food additives, flavor extracts, and emulsions
High-purity oils, waxes, and lubricants
Adhesives, resins, and coatings
Polymers and chemical blends
Laboratory and pilot-scale reaction studies
