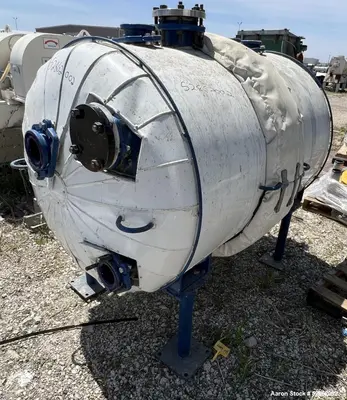

Used Pfaudler Glass Lined Tank, 250 Gallon Capacity, 9115 Glass, Horizontal. Approximately 36" diameter x 42" straight side. Clamp on dished ends. Internal rated 50 psi / FV at -20 to 450 degrees F. Openings: (8) 3", (1) 4". Approximately 3" bottom outlet, 21" discharge height. Mounted on (4) legs. National Board# 47203, Serial# R192-0548.
USED EQUIPMENT FACTS ABOUT THIS MACHINE
This Used Pfaudler 250 Gallon Glass-Lined Horizontal Tank is engineered for high-purity chemical storage and processing. Constructed with 9115 glass lining, it provides excellent corrosion resistance, making it ideal for handling aggressive chemicals, acids, and solvents.
The tank has an approximate 36" diameter and 42" straight side, featuring clamp-on dished ends for strength and pressure resistance. It is rated for 50 PSI / Full Vacuum at temperatures from -20°F to 450°F, making it versatile for both high-pressure and vacuum applications. The tank includes eight 3" openings, one 4" opening, and a 3" bottom outlet with a 21" discharge height. Mounted securely on four legs, this vessel offers stability and ease of installation.
Specifications
Manufacturer: Pfaudler
System Type: Chemstore Horizontal Tank
Capacity: 250 Gallons
Orientation: Horizontal
Glass Lining: 9115 Glass
Diameter: Approximately 36"
Straight Side Height: 42"
Head Type: Clamp-On Dished Ends
Pressure Rating: 50 PSI / Full Vacuum
Temperature Range: -20°F to 450°F
Openings:
(8) 3" Openings
(1) 4" Opening
Bottom Outlet: Approximately 3"
Discharge Height: 21"
Mounting: 4-Leg Stand
National Board Number: 47203
Serial Number: R192-0548
Condition: Used / Excellent Condition
Applications
Corrosive chemical storage
Pharmaceutical ingredient processing
Solvent containment
Acid handling and storage
Specialty chemical processing
Resin and polymer storage
Industrial liquid handling
Laboratory-scale chemical storage
Waste chemical containment
Petrochemical product storage
