W.F. Wells W-9 Dual Column Horizontal Band Saw available for sale, offering a 9" x 17" cutting capacity and variable blade speed up to 380 FPM. Features include hydraulic feed, manual blade tension, and a 10-gallon coolant system. Suitable for precision cuts.
| Rect-Cap (H) | 9" | 228.6 mm |
| Rect-Cap (W) | 17" | 431.8 mm |
| Rounds-Cap | 9" | 228.6 mm |
| Square-Cap | 8" | 203.2 mm |
| Power | 3 hp | 2.2 kW |
| Type (Auto, Manual, Semi) | Manual | Manual |
| Blade Width | 1" | 25.4 mm |
| Blade Thickness | 0.035" | 0.889 mm |
| Blade Length | 138' | 42,062 mm |
| Dimensions | 80 x 35 x 62 | 80 x 35 x 62 |
| Weight | 1000 | 1000 |

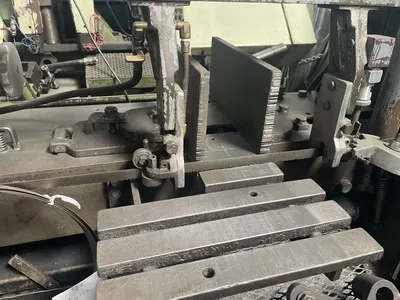

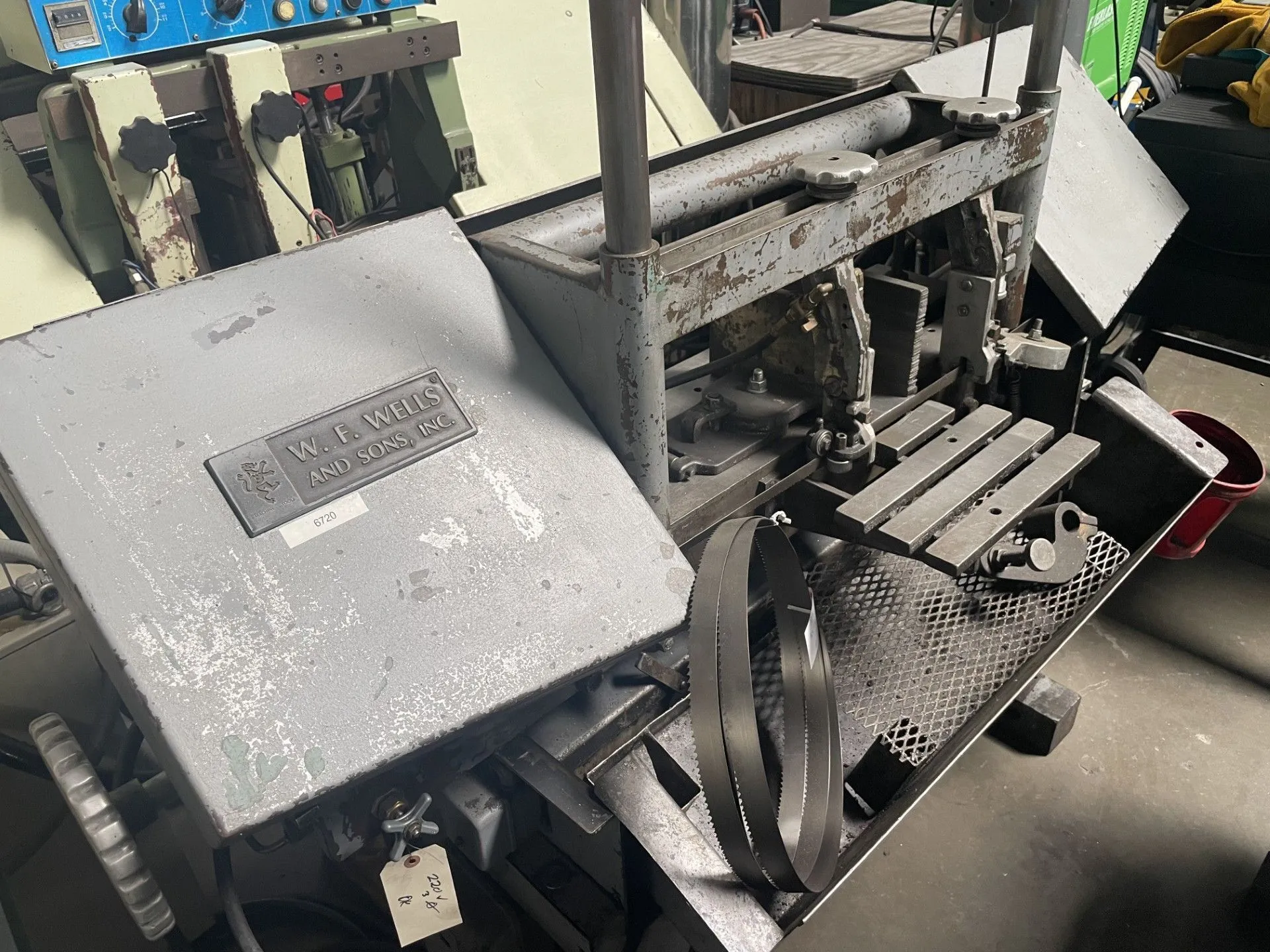

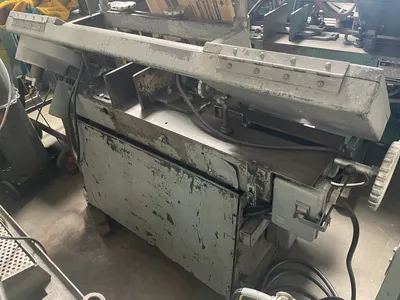

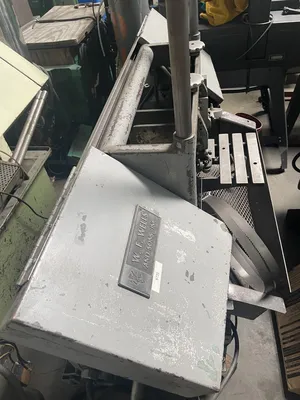

W.F. Wells W-9 Dual Column Horizontal Band Saw 9" x 17" #6720 #1
SPECIFICATIONS:
Capacity:
Rectangle 90 Degrees: 9" x 17"
Round @ 90 Degrees: 9"
Rectangle @ 45 Degrees: 9" x 8"
Round @ 45 Degrees: 8"
Blade Speed (Variable): 70- 380 FPM
Blade Size: 1" x 0.035" x 11' 6"
Sawing Force (Variable): 30- 120 Lbs.
Band Wheel Size: 14.5"
Coolant Capacity: 10 Gallons
Blade Drive: 3 HP
Voltage: 220V Three Phase
Dimensions (L x W x H): 80" x 35" x 62"
Weight: 1,000 Lbs.
EQUIPPED WITH:
Twin Post Design
Hydraulic Feed
Manual Blade Tension
Manual Vise
Coolant System
