Used Pattyn Automated Packaging System. 300 parts per minute and has a capacity of 440 parts per box. System consists of: Combination Case Erector and Bag Inserter MTM12; Driven Roll Conveyor; Driven Roll Conveyor; Bag Decuffer Folder (American); 31 Case Closer Tape; Driven Roll Conveyor; Case conveyors (instead of Box flow); Robotic palletizer; Pallet conveyor; Perimeter safety fencing; 750mm zone x 2; Decline belt conveyors; Pop-up Transfer; Lower conveyor: 30 meters of conveyor (20 zones of 1500mm), 24 meters of conveyor (16 zones of 1500mm); Overhead conveyor: 30 meters of conveyor (20 zones of 1500mm), 22.5 meters of conveyor (15 zones of 1500mm), Extended legs; Pop-up Transfer; 750mm zone x 1, 1050mm zone x 1 (650mm width); Pop-up Transfer; 1500mm zone x 2; Decline belt conveyor; 750mm zone + 90 curve + 525mm zone + 90 curve + 1050mm zone; Power supplies + electrical controls; TIJPrinter (6) + side-mount stand; Barcode scanner; ID Tech Labeling machine Model 252 + stand. New in 2022.
Used Equipment Facts About This Machine
Manufacturer’s Info:
Manufacturer: Pattyn Packaging Lines
Model: MTM12
Year Built: 2022
Description: The Pattyn Automated Packaging System is designed for high-speed, efficient packaging operations, capable of handling up to 300 parts per minute with a capacity of 440 parts per box. This comprehensive system integrates multiple components to streamline the packaging process, ensuring precision and reliability.
System Components:
Combination Case Erector and Bag Inserter (Model MTM12): Automates the formation of cases and insertion of bags, enhancing efficiency.

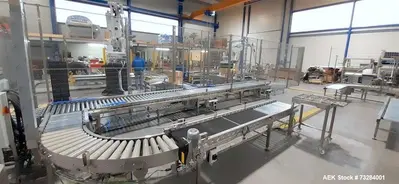

Driven Roll Conveyors: Facilitate smooth and consistent movement of cases through the packaging line.
Bag Decuffer Folder (American): Ensures proper bag positioning and sealing within cases.
Case Closer (Model 31 Case Closer Tape): Secures cases with tape, maintaining package integrity.
Robotic Palletizer: Automates the stacking of cases onto pallets, reducing manual labor and increasing safety.
Pallet Conveyor: Transports loaded pallets efficiently within the facility.
Perimeter Safety Fencing: Provides a secure environment by enclosing the operational area.
Decline Belt Conveyors and Pop-up Transfers: Manage product flow and orientation throughout the system.

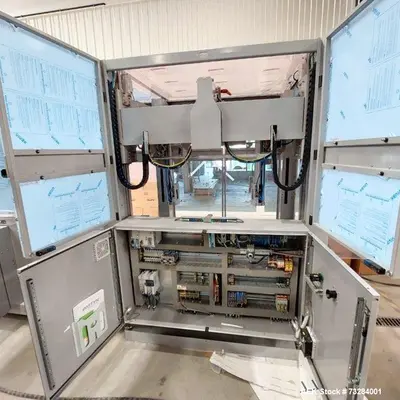

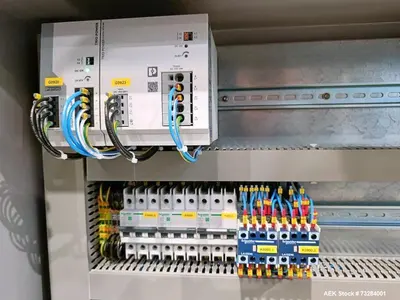

Power Supplies and Electrical Controls: Ensure consistent and reliable operation of all components.
TIJ Printers (6) with Side-Mount Stands: Enable on-the-fly printing of labels or barcodes on packages.
Barcode Scanner: Facilitates tracking and quality control by scanning package barcodes.
ID Tech Labeling Machine (Model 252) with Stand: Applies labels accurately to packages, enhancing product identification.
Specifications:
Speed: Up to 300 parts per minute
Box Capacity: 440 parts per box
Conveyor Details:
Lower Conveyor: 30 meters (20 zones of 1500mm), 24 meters (16 zones of 1500mm)
Overhead Conveyor: 30 meters (20 zones of 1500mm), 22.5 meters (15 zones of 1500mm) with extended legs
Pop-up Transfers: Various zones including 750mm, 1050mm (650mm width), and 1500mm zones
Decline Belt Conveyor: 750mm zone with 90-degree curves and additional zones
Applications: This automated packaging system is ideal for industries requiring high-speed, precise packaging solutions, including:
Food and Beverage: Efficiently packages food products into cases with protective bag inserts.
Pharmaceuticals: Ensures secure and contamination-free packaging of medical products.
Consumer Goods: Handles a variety of products, enhancing packaging efficiency and consistency.
What Products Would This Be Used For?
Bakery Items: Bread, pastries, and other baked goods requiring protective packaging.
Frozen Foods: Products needing secure packaging to maintain quality during storage and transport.
Industrial Components: Small parts or components packaged in bulk for distribution.
