HEAD SERIAL ........................ 2J-257181
BODY SERIAL ........................ 12BR 237917
SERIES ............................. I
AREA OF TABLE ...................... 42" X 9"
SPINDLE SPEEDS ..................... 60 TO 4200 RPM (VARIABLE)
SPINDLE FEEDS....................... .0015,.003, .006 IPR
LONGITUDINAL TABLE TRAVEL........... 30"
CROSS TRAVEL........................ 12"
VERTICAL KNEE TRAVEL................ 16"
QUILL TRAVEL........................ 5"
RAM TRAVEL.......................... 12"
DEPTH OF THROAT..................... 6-3/4" TO 18-3/4"
TAPER IN SPINDLE.................... R8
HEAD TILTS, FRONT/BACK.............. 45 DEGREE EITHER WAY

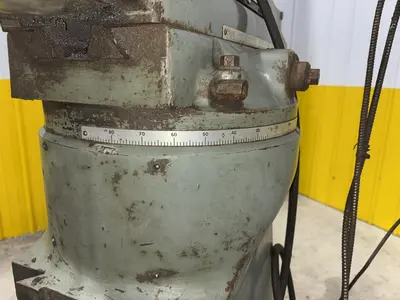

HEAD SWIVELS, LEFT/RIGHT............ 90 DEGREE EITHER WAY
CHROME WAYS......................... YES
1 SHOT LUBE......................... YES
DIGITAL READ OUT ................... 2 AXIS
MOTOR............................... 2 HP
