SERIAL ........................... 4A4P5B-15
MODEL ............................ 4
AREA OF TABLE .................... 80" X 16"
SPINDLE SPEEDS ................... (24) 16 TO 1600 RPM
LONGITUDINAL & CROSS FEEDS ....... (32) 1/4 TO 60 IPM
VERTICAL FEEDS ................... (32) 1/16 TO 15 IPM
LONGITUDINAL TRAVEL .............. 42"
CROSS TRAVEL ..................... 14"

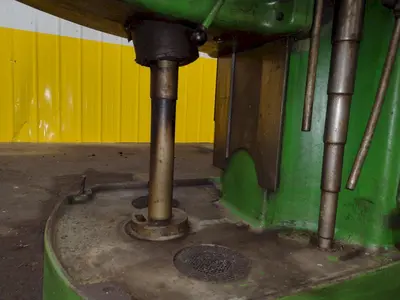

VERTICAL KNEE TRAVEL ............. 20"
CENTERLINE OF SPINDLE TO TABLE ... 0" MIN TO 20" MAX
RAPID TRAVERSE ................... 150 IPM
TAPER IN SPINDLE ................. #50 NS
OVERARM SUPPORT .................. YES
DUAL CONTROL ..................... YES
COOLANT .......................... YES
MAIN MOTOR ....................... 30 HORSEPOWER
