SERIAL .............................. 9-42-90-5356

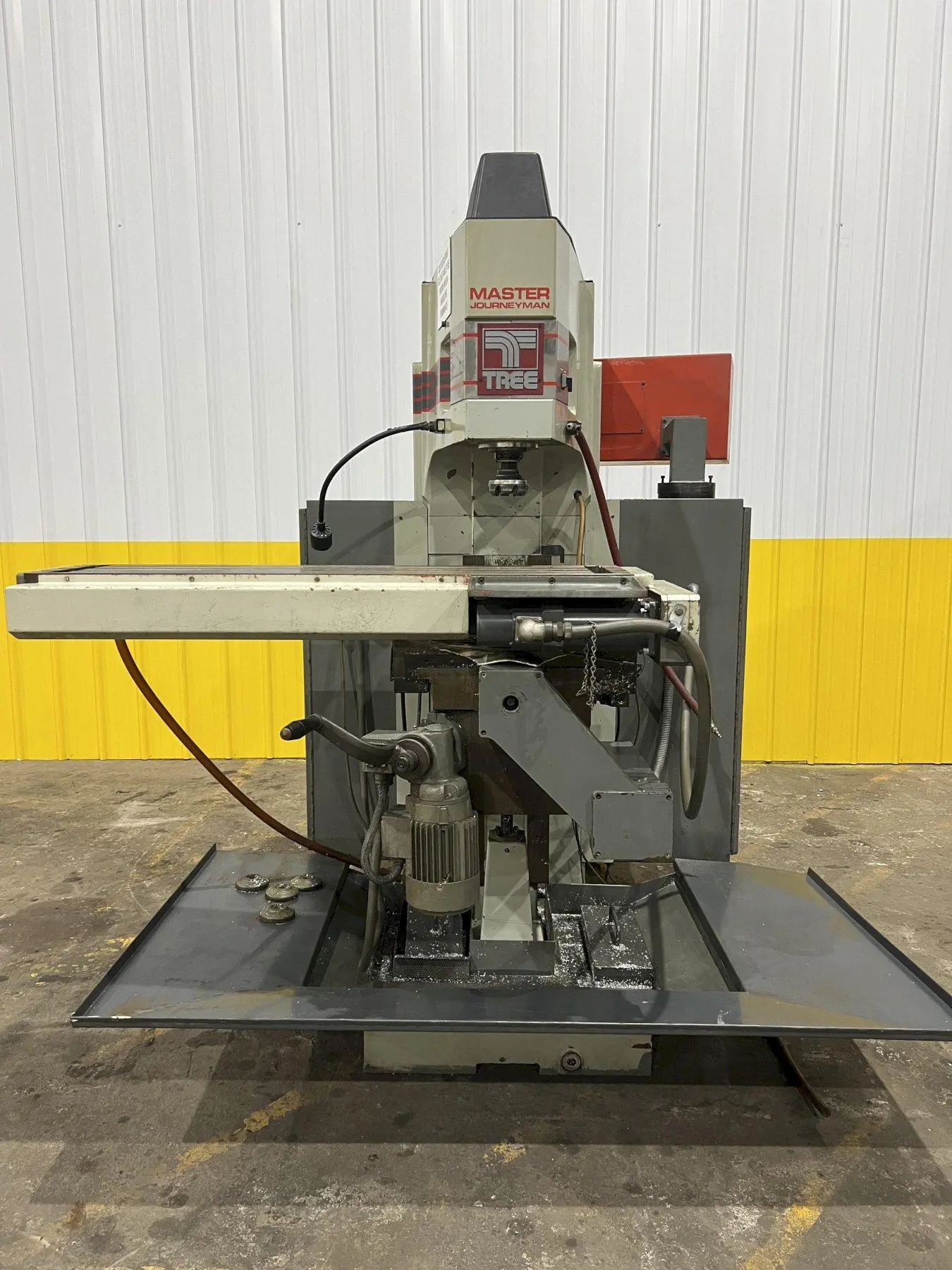

MODEL ............................... J-425 JOURNEYMAN
SERIAL .............................. 9-42-90-5356
MODEL ............................... J-425 JOURNEYMAN
SERIAL .............................. 9-42-90-5356
MODEL ............................... J-425 JOURNEYMAN
CONTROL ............................. DYNAPATH 20MU CNC CONTROL
TABLE SIZE .......................... 12" X 51"
MACHINE TRAVELS (X/Y) ............... 30" X 15"
QUILL TRAVEL ........................ 6" PROGRAMMABLE
KNEE TRAVEL ......................... 17.7" MANUAL
SPINDLE TO TABLE DISTANCE ........... 3.7" TO 21.4"
SPINDLE CENTER TO COLUMN DISTANCE ... 14.8"
RAPID TRAVERE RATE (X/Y/Z) .......... 350 / 325 / 325 IPM
TABLE LOAD .......................... 800 LBS.
SPINDLE TAPER ....................... CAT 40 TAPER
SPINDLE SPEEDS ...................... 6,000 MAX RPM
SPINDLE DRIVE ....................... 7.5 HP
