SERIAL ................. 13596

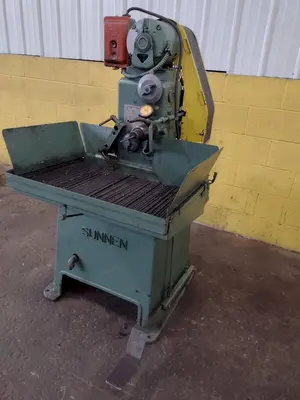

MODEL .................. MBB-1290D
DIAMETER RANGE ......... .120" TO 2.625"
MAXIMUM HONING LENGTH:
1/8" BORE IS 1-7/8"
2-5/8" BORE IS 18"
HONING SPEEDS ......... 300, 450, 650 & 850 RPM
TOOL SOCKET SIZE ...... 1-3/4"
OIL SYSTEM CAPACITY ... 12 GALLONS
MOTOR ................. 1/2 HP
SELF ENERGIZING FRICTION SPINDLE BRAKE

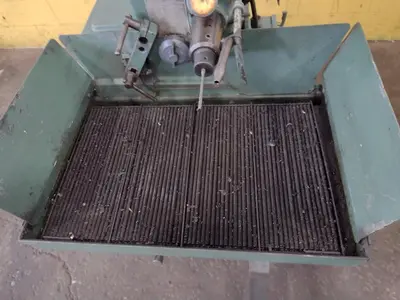

BACK FOIL TRAY WITH SPLASH GUARDS
OAD ................... 32" L-R X 39" F-B X 58" HIGH
APPROXIMATE WEIGHT .... 800 LBS.
